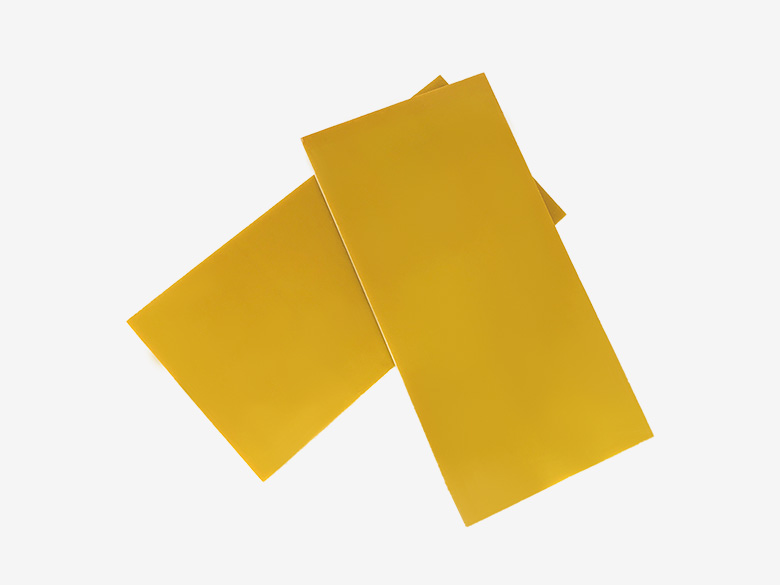

NEMA G-11/EPGC 203/HGW2372.4/EP3 High Temperature Epoxy Fiberglass Sheet
Standard:IEC 60893-3:2003
Size:1020*1220 /1020*1020 /1220*2040 /1220*2440 mm(support customize)
Thickness: 0.1-100mm
Color: Green/Water Green/White/Yellow
Heat resistance: Class F (155° C)
Certificate Available:UL/RoHS/MSDS/REACH
Application:Electrical insulation materials/components(such as E-motor,Transformer)

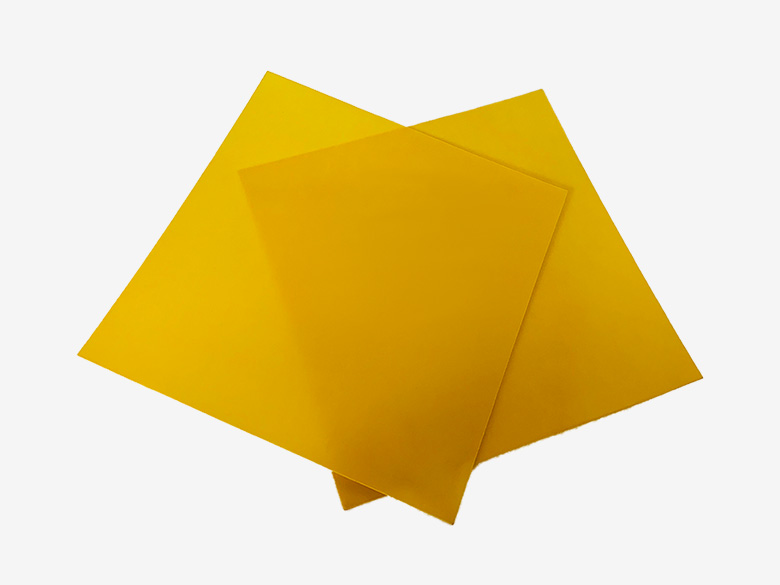

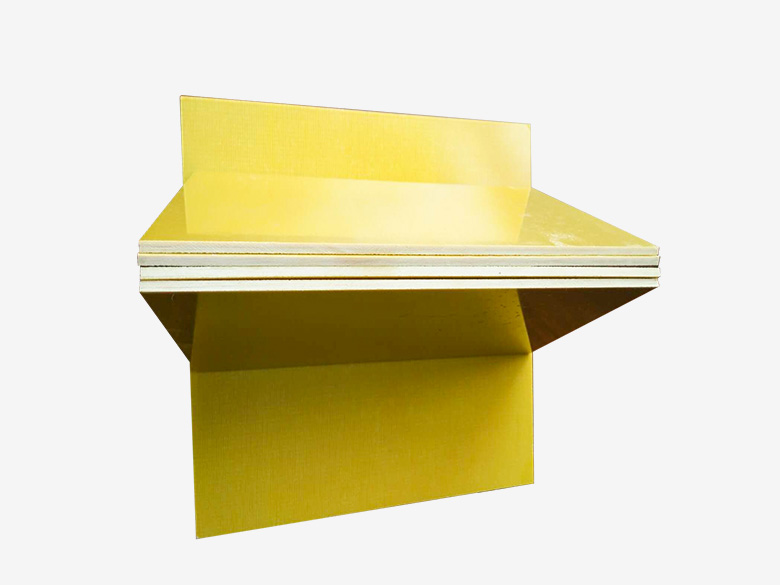

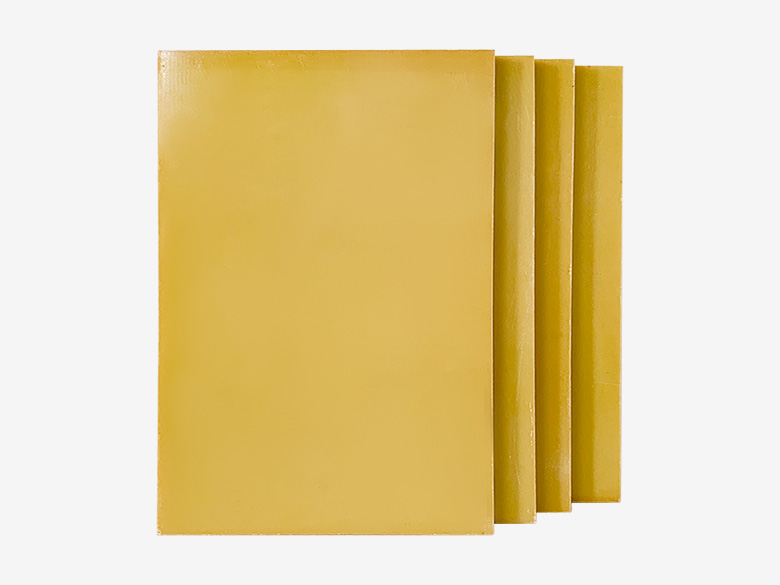

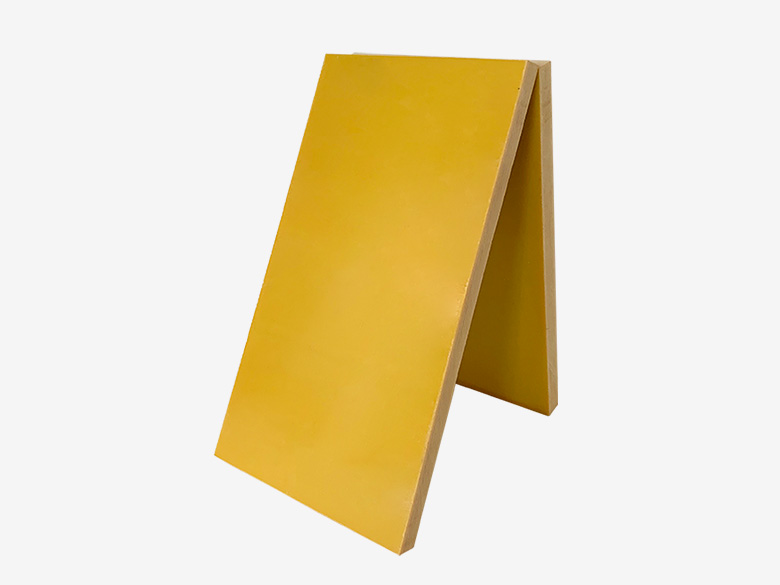

G11 Epoxy Fiberglass laminate Sheet is created by compressing fiberglass cloth, soaked in high temperature resistant epoxy resin under heat with excellent mechanical and dielectric properties, good mechanical performance at high temperature and high humidity condition, and good processability.
1. High Heat Resistance (High Tg)
G11 is considered an upgraded version of G10. Its higher glass transition temperature (Tg) allows the laminate to maintain excellent mechanical strength and flexural performance even at elevated temperatures, making it suitable for demanding electrical applications.
2. Excellent Electrical and Mechanical Performance
G11 provides superior dielectric properties in both dry and humid environments. It also features high compressive strength, tensile strength, and dimensional stability, ensuring reliable performance in critical insulation systems.
3. Chemical Resistance
The material demonstrates strong resistance to various solvents and acidic chemicals, allowing it to perform well in harsh industrial environments.

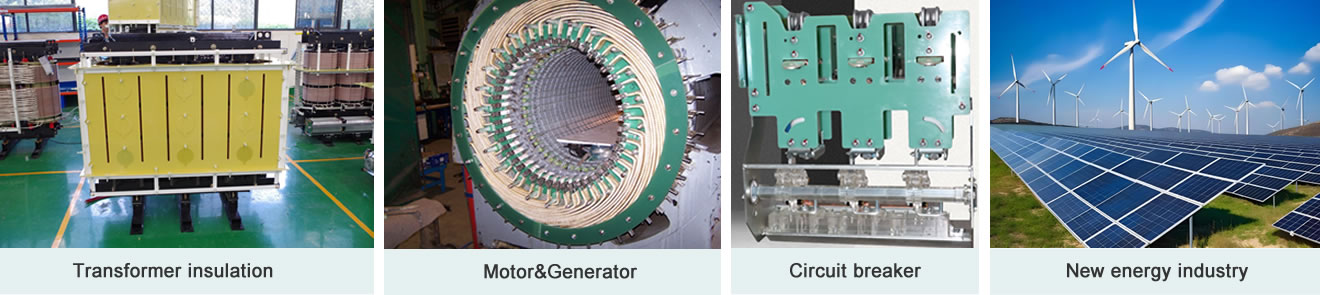

G11 epoxy fiberglass sheets are mainly used in the following industries:
Electric motors and generators:Motor slot wedges,Insulation spacers and pads
Transformer insulation systems:Insulation blocks,Insulation clamps
High-voltage electrical equipment:Switchgear insulation supports,Busbar support plates,Circuit breaker insulation barriers
Electronics and PCB manufacturing:PCB testing fixtures,Electronic equipment frames
Industrial machinery components:
Planetary gears,Mechanical support plates,Wear-resistant pads
Renewable energy equipment (solar, wind, and energy storage)
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

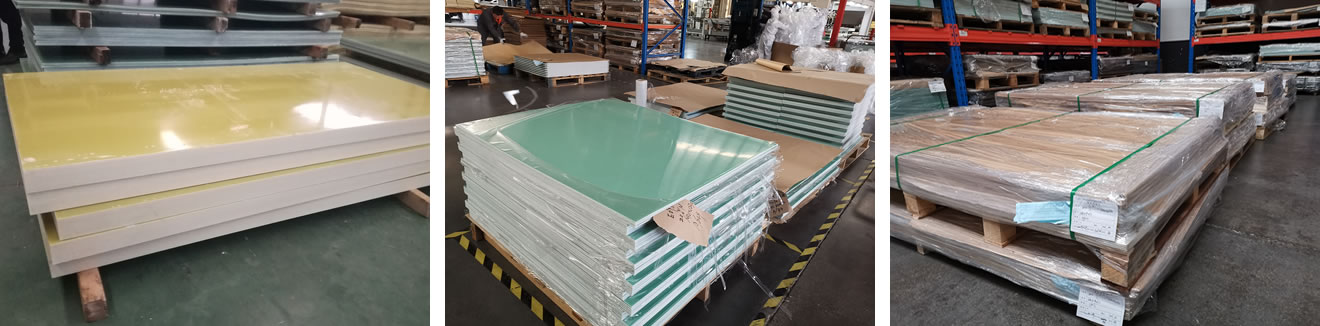

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Product name | NEMA G-11/EPGC 203/G11 epoxy sheet | |||||
| SECTIONI-MISC CHARACTERISTICS | ||||||
| Density | g/cm³ | 1.95-2.05 | ||||
| Flammability | HB | |||||
| Water absorption(5mm) | % | ≤0.12 | ||||
| Chemical family | Resin | Epoxy | ||||
| Reinforcement type | Glass fabrics | 7628 | ||||
| Thermal characteristics | ℃ | ≥155 | ||||
| Colour | Green(Natural),Yellow | |||||
| SECTIONII-MECHANICAL CHARACTERISTICS | ||||||
| Bending strength | MPa | ≥450 | ||||
| Tensile strength | MPa | ≥350 | ||||
| Compressive strength ⊥ | MPa | ≥450 | ||||
| Modulus of elasticity | MPa | ≥24000 | ||||
| Impact strength // | kJ/m² | ≥33 | ||||
| SECTIONⅢ-ELECTRICAL CHARACTERISTICS | ||||||
| Electrical strength ⊥ | KV/mm,thicknesss3mm | ≥15 | ||||
| Breakdown voltage// | kV | ≥45 | ||||
| Proof tracking index | PTI | ≥200 | ||||
| SECTION IV-HAZARDOUS INGREDIENTS | ||||||
| Hazardous components | No OSHA hazardous ingredients | |||||
| SECTIONV-REACTIMTY DATA | ||||||
| Chemical stability | Stable under normal conditions | |||||
| Conditions to avoid | Avoid longtime heating above 155℃ | |||||
| Incompatible materials | Exposure to strong acids or bases will cause damage | |||||
| Hazardous polymerizations | Will not occur | |||||
| Storage and use effects | Conventional performance remains stable within 1 year. Long-term exposure to sunlight and high humidity will cause discoloration and performance degradation. | |||||
| SECTION VI-PRECAUSTION | ||||||
| Over exposure effects | Dust from machining products ca irritate the eyes,nose,throat and lungs.Prolonged inhalation of dust can cause lung disease. | |||||
| Note:Alinformation,recommendations and suggestions appearing herein concerning this product are average values ascertained at room temperature by regular statistical analysis.It is provided purely for information and shall not be regarded as binding unless expressly agreed otherwise. | ||||||
| DIMENSIONAL TOLERANCE | Tolerance of length &width is less than 5mm | |||||
| Thickness(mm) | Tolerance(mm) | Thickness(mm) | Tolerance(mm) | |||
| 0.5-0.8 | ±0.05 | 6.0-8.0 | ±0.50 | |||
| 1.0-1.8 | ±0.15 | 10.0-15.0 | ±0.75 | |||
| 2.0-2.8 | ±0.20 | 16.0-20.0 | ±1.00 | |||
| 3.0-5.0 | ±0.30 | 21.0-50.0 | ±2.00 | |||
