Name: Bakelite/ PFCP 203
Standard:IEC 60893-3-4:2003
Size:1220*1020mm/1220*2040mm/1030mm*2030mm/1040mm*2080mm
Customization supported
Regular Thickness::0.5-50mm

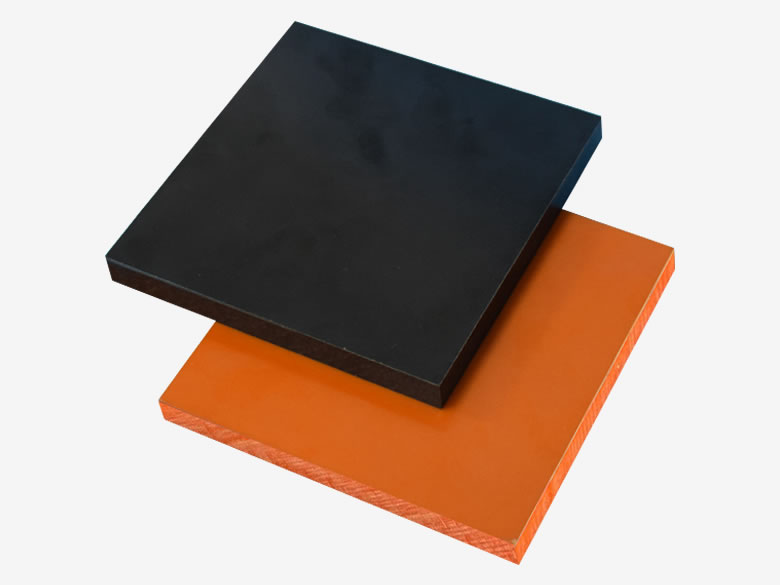

Colors: Orange, Black, Yellow

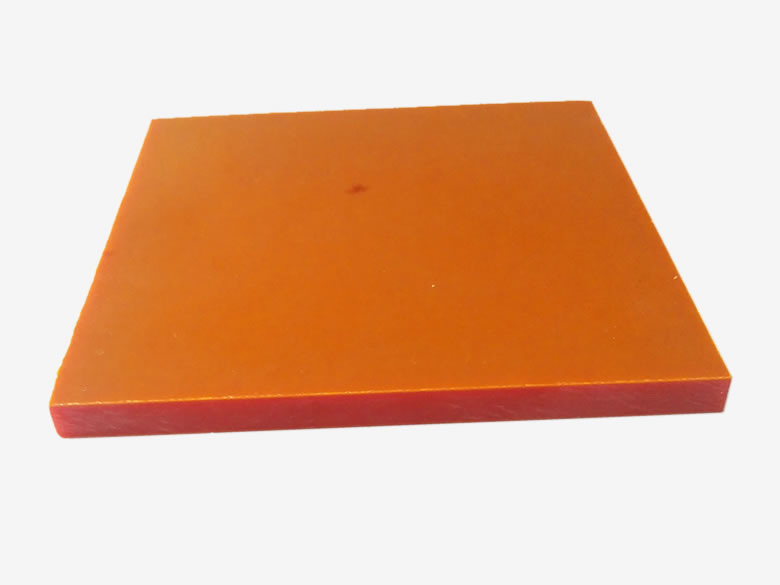

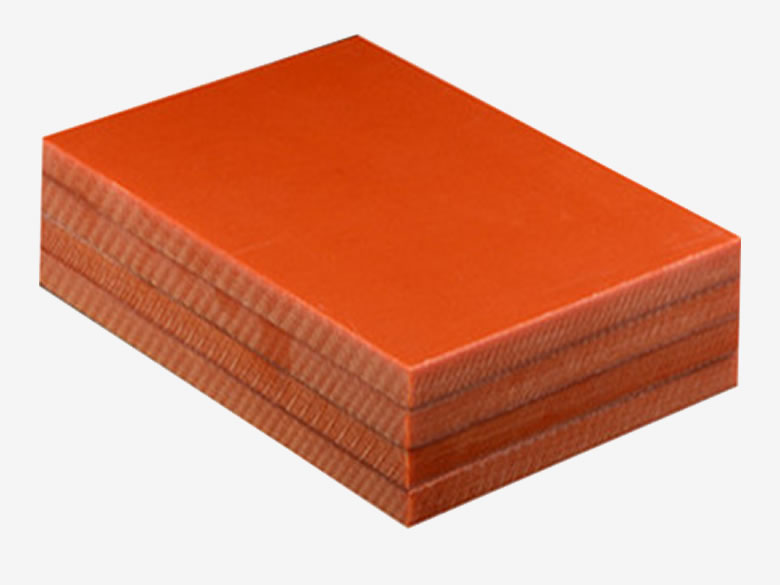

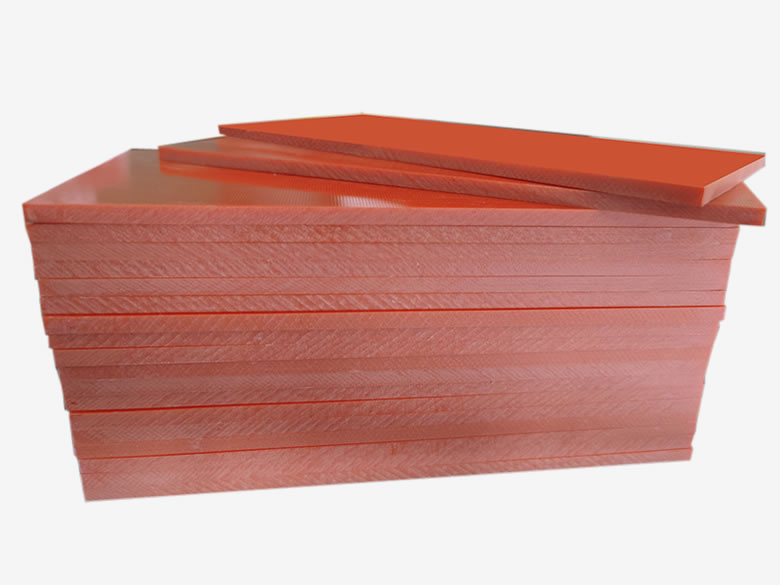

Bakelite sheet (phenolic paper sheet) is a thermosetting plastic material manufactured by impregnating paper with phenolic resin and consolidating it under heat and pressure. It is characterized by excellent electrical insulation properties, high thermal resistance, superior wear resistance, and strong mechanical strength.
Suitable for insulating structural spares in motors and electrical equipments with high mechanical performance requirements and can be used in transformer oil. Because of its excellent mechanical strength, it is also suitable for PCB drilling pad, table grinding base plate, distribution boxes, jig boards, mold plywood, high and low voltage wiring closet, packaging machine, forming machine, drilling machine, etc.
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

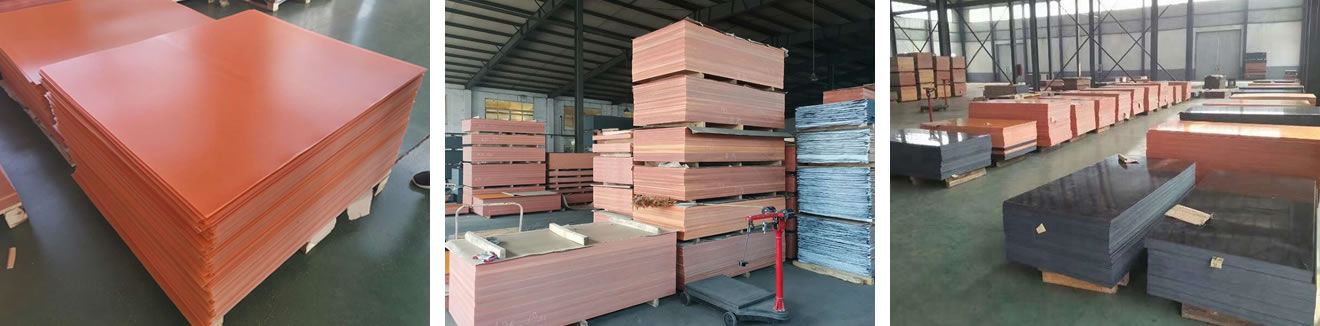

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Type | Bakelite for Fixture | Grinding Bakelite | XPC Board | ESD Bakelite | |||
| Standard | IEC 60893-3-4:2003/GB/T 1303.6-2009/JIS K 6911 | ||||||
| Raw Material | Adhesive | Phenolic Resin | |||||
| Reinforcing material | Bleached wood pulp paper | Cellulose Fiber Paper | Bleached wood pulp paper | ||||
| Flame resistance | UL94-HB | ||||||
| Heat resistance | Class B（130°C） | ||||||
| Colour | Orange | Black | Yellow | Orange | Orange/Yellow | Black | |
| Standard Size (Customization supported) | 1220*1020mm | 1220*2040mm | 1220*2440mm | Customization | 1030*1230mm | 1030*1230mm | |
| Characteristics | Good electrical performance at room temperature, good mechanical processing performance, excellent electrical, mechanical and processing properties | Thickness tolerance ± 0.3MM, warpage ≤ 0.25% Good flatness, uniform thickness, good hardness and bright surface. | Good punching and shearing properties at room temperature,and good electrical properties and temperature resistance. | Anti-static index: 106Ω-109Ω Stable anti-static properties, Resistant to organic solvents, insoluble at room temperature, high mechanical strength, excellent processing performance，use temperature -20°C-120°C | |||
Technical Specifications
| Property | Value |
| Material | Phenolic resin + paper/fabric |
| Thickness Range | 3mm – 50mm |
| Temperature Resistance | Up to 150°C (continuous) |
| Dielectric Strength | ≥10 kV/mm |
| Water Absorption | <1% |
| Density | ~1.4 g/cm³ |
