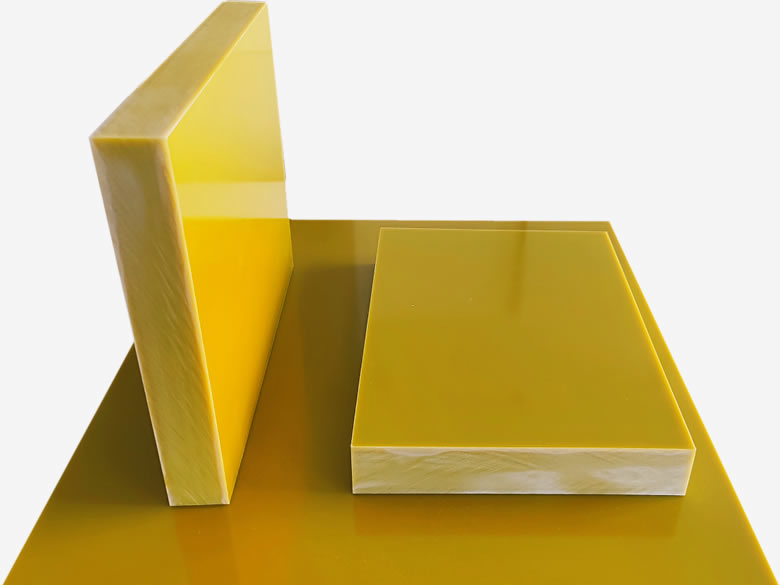

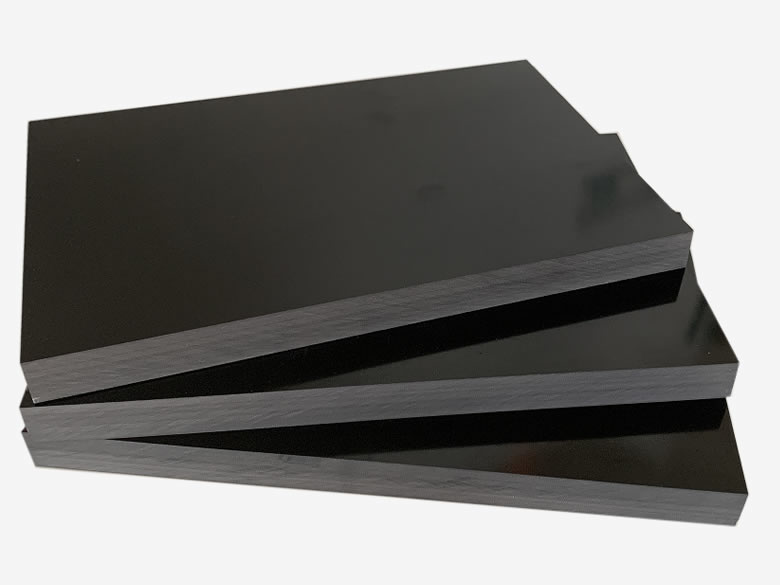

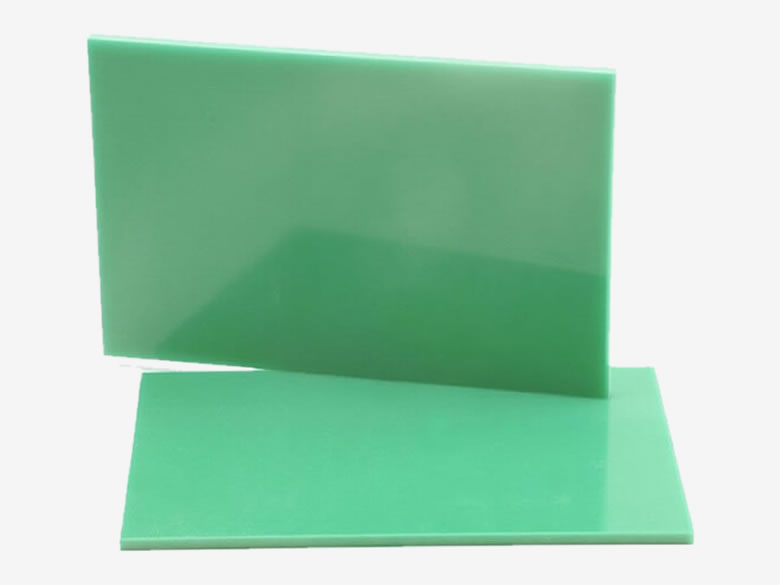

G10 epoxy fiberglass sheet is a laminated insulation material made from glass fiber cloth and epoxy resin under high temperature and high pressure. It is a high-performance electrical insulation composite material. Due to its excellent mechanical strength, electrical insulation properties, and thermal resistance, G10 epoxy sheets are widely used in the power, electrical, electronics, and mechanical industries.

G10 Epoxy Sheet properties

Excellent Electrical Insulation
G10 provides high insulation resistance and dielectric strength, making it suitable for high-voltage electrical equipment.
High Mechanical Strength
The glass fiber reinforced structure gives the material excellent bending strength and impact resistance.
Good Heat Resistance
The long-term operating temperature can reach approximately 130°C (Class B insulation).
Good Dimensional Stability
It is less affected by temperature and humidity and maintains stable dimensions.
Easy to Machine
G10 sheets can be processed by CNC machining, drilling, cutting, and milling, making them suitable for manufacturing various insulation components.

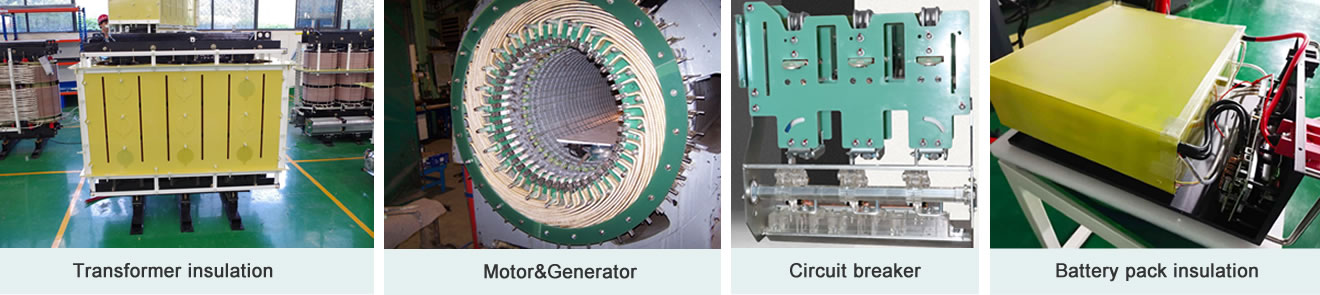

Application of  G10  epoxy fiberglass sheet

G10 features extremely high mechanical strength, excellent electrical insulation performance, and very low water absorption, making it suitable for a wide range of applications.

Electrical and Electronic Applications (Core Fields)
High-Voltage Insulation: Widely used as structural insulation components in transformers, switchgear, electric motors, and generators.
Circuit Support: Ideal for manufacturing precision test boards, busbar support components, and terminal boards.
Arc Protection: With excellent arc resistance and dielectric strength, it is commonly used to produce arc-chutes and arc barriers in circuit breakers.
Industrial and Mechanical Applications
Structural Support: Used for manufacturing load-bearing plates, washers, bushings, gears, and mechanical isolation components.
Precision Fixtures: Suitable for welding fixtures, inspection molds, and SMT carrier trays in electronic manufacturing processes.
Other Applications
Tool Handles: Due to its mechanical strength and heat resistance.
New Energy Vehicles: Used as battery insulation partitions in electric vehicle battery systems.
Marine Electronics: Applied in protective housings and insulation structures for onboard electronic equipment.

Why Choose us

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.

3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.

4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.

5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.

Our Certificates

Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.

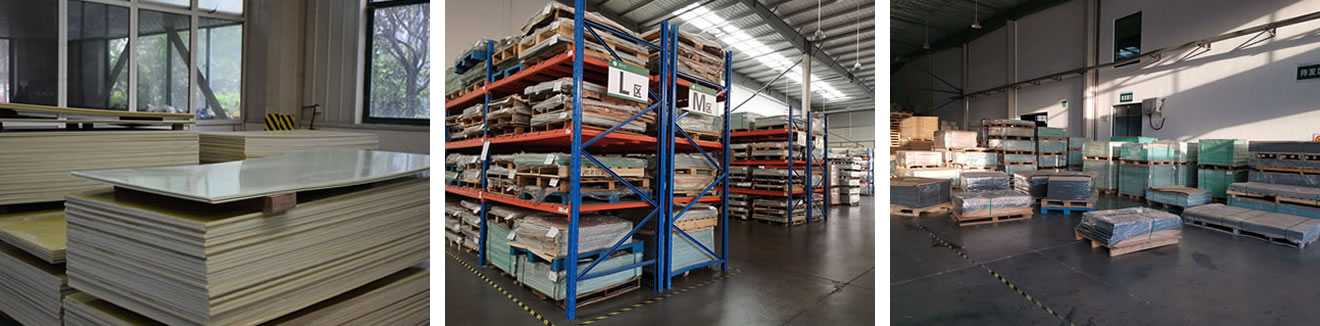

Warehouse and packaging
