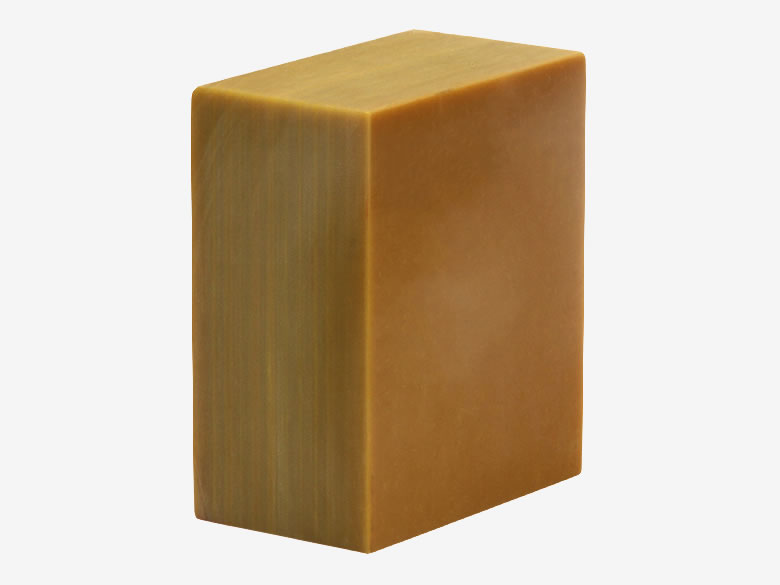

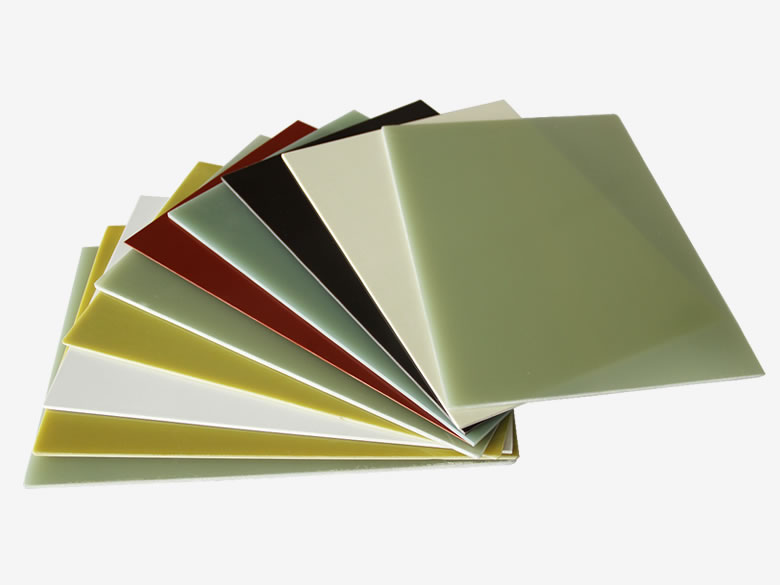

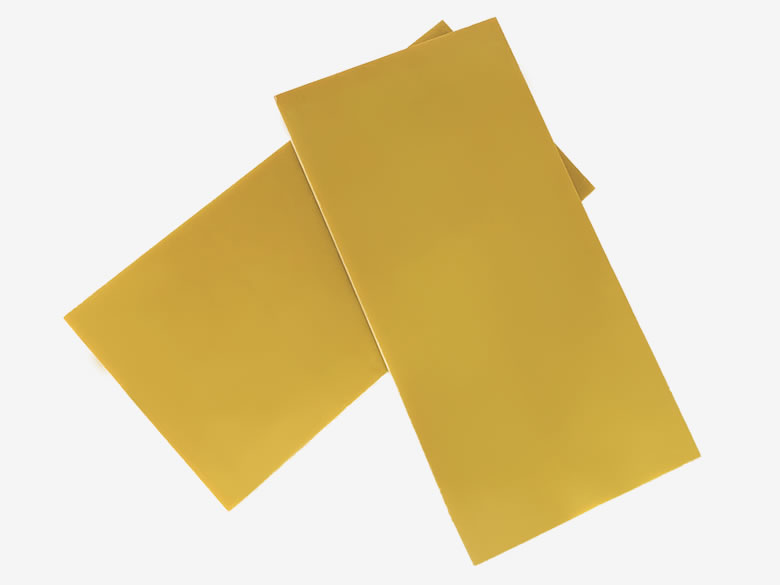

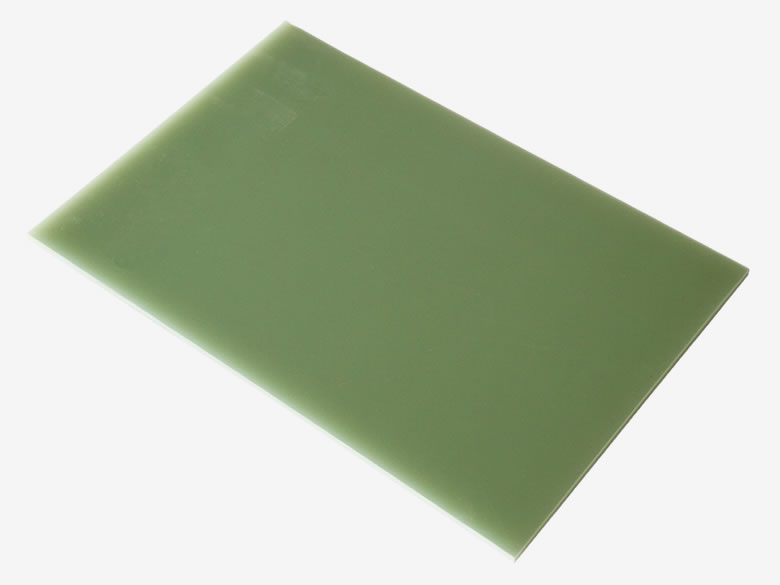

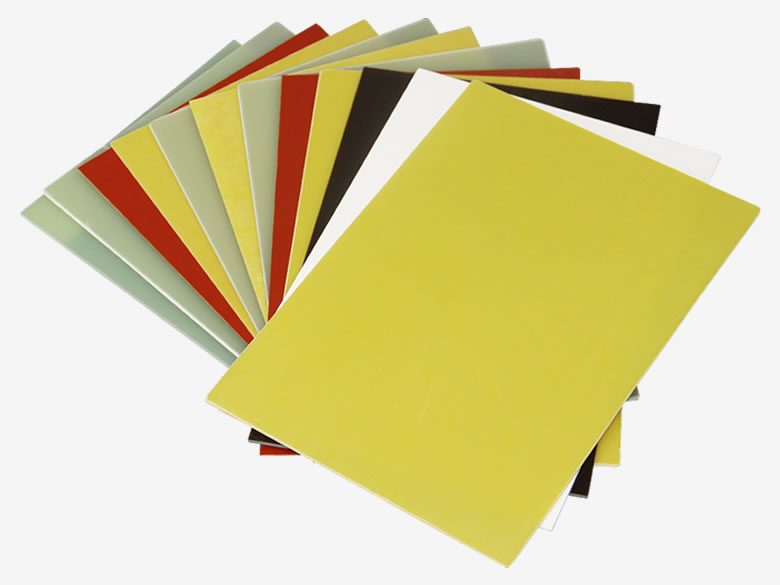

3240 epoxy fiberglass laminate sheet  is a commonly used thermosetting laminated insulation material, made from alkali-free electrical glass fiber fabric impregnated with epoxy resin and cured under high temperature and pressure. It is widely applied in electrical insulation and mechanical structural fields, and is considered a medium-to-high performance insulating material.

3240 epoxy sheet Key Features

Excellent electrical insulation performance: Maintains stable dielectric properties under both dry and moderately humid conditions

High mechanical strength: Good compressive and flexural strength, suitable for structural support components

Good heat resistance: Thermal class B (130°C)

Moisture resistance and dimensional stability: Minimal performance degradation in humid environments

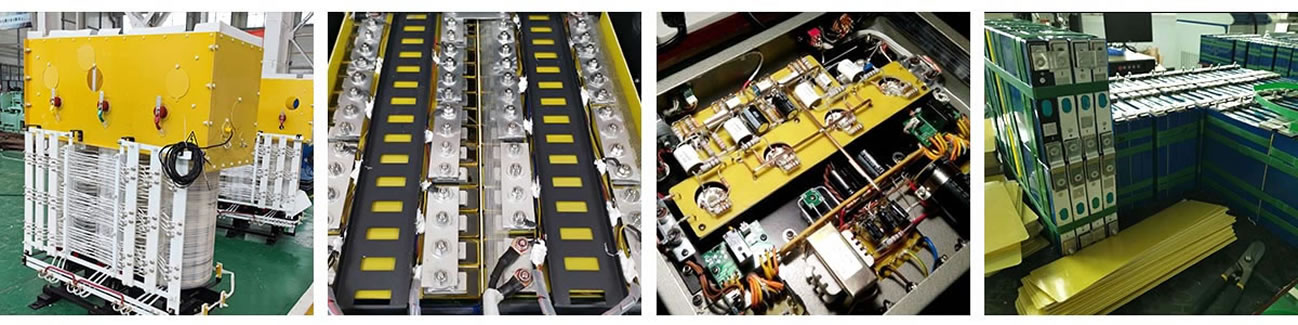

Application of 3240 epoxy sheet

Insulation structural parts for motors and generators (such as slot wedges and spacers)

Insulating support components for transformers

Internal insulation parts in high- and low-voltage switchgear

Insulating plates and terminal boards in electrical equipment

Structural insulation components in industrial machinery

Why Choose us

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.

3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.

4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.

5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.

Our Certificates

Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.

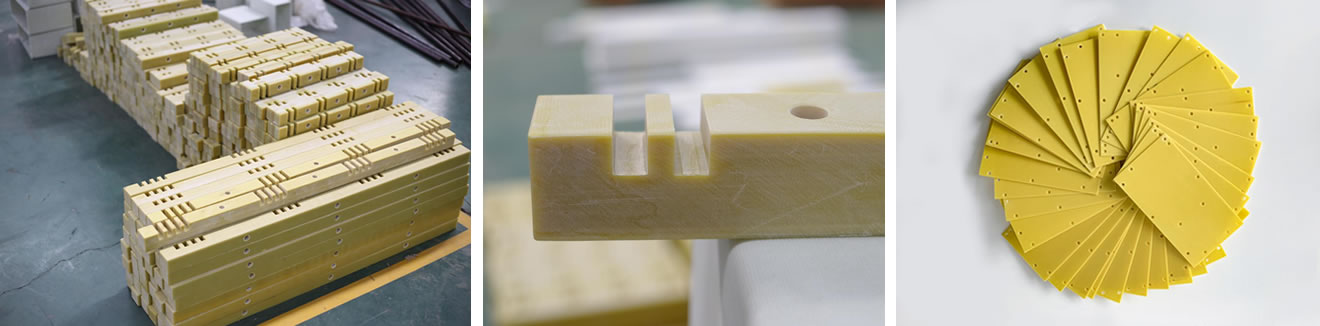

Provide customized machined parts

We can customize insulation processing parts based on the product drawings you provide.
