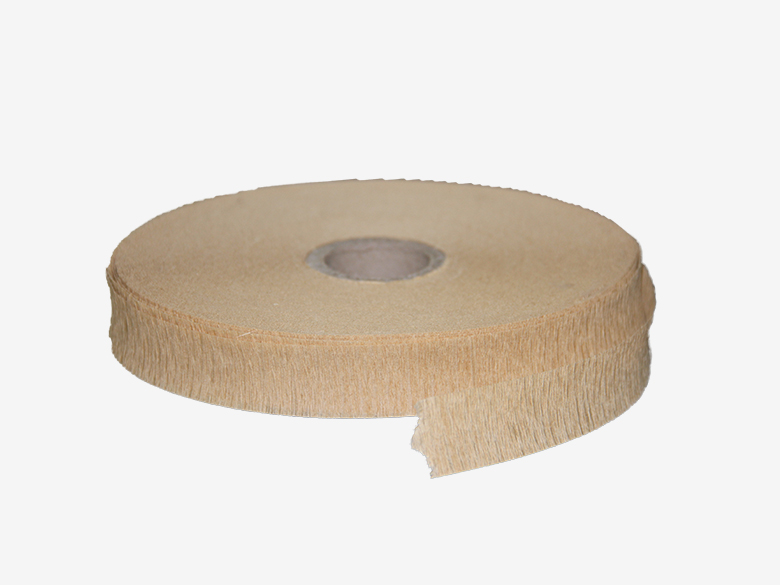

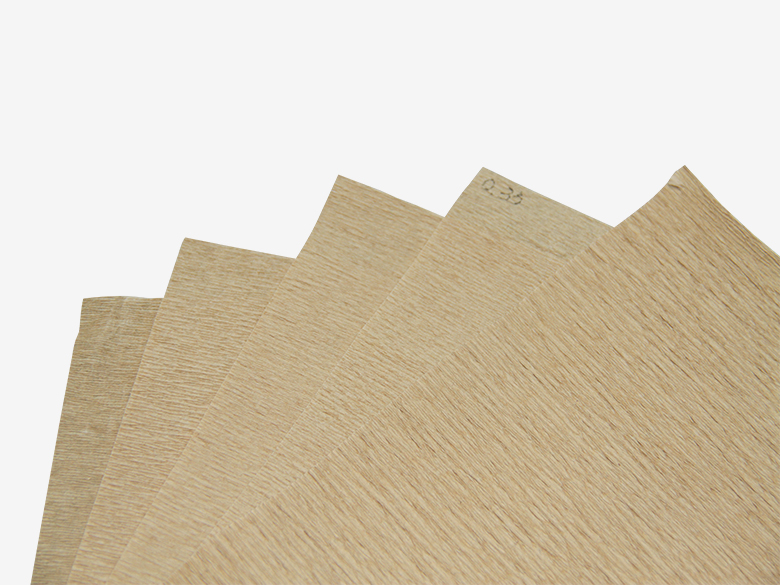

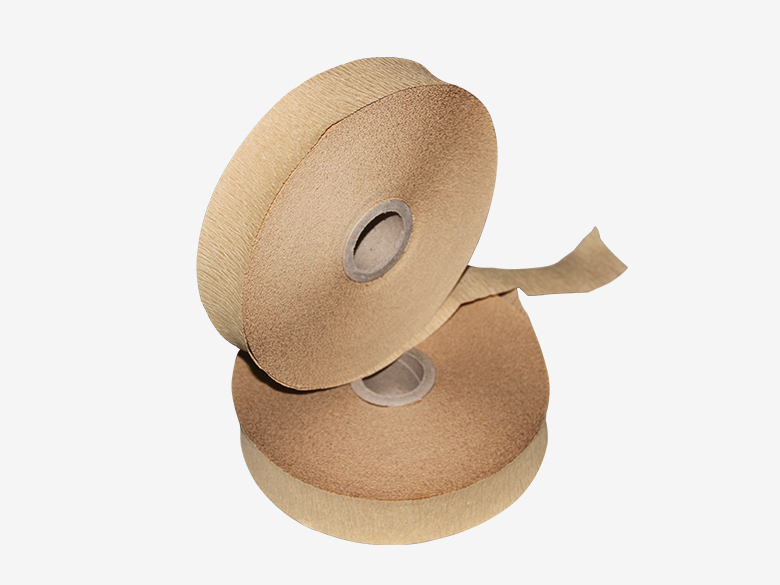

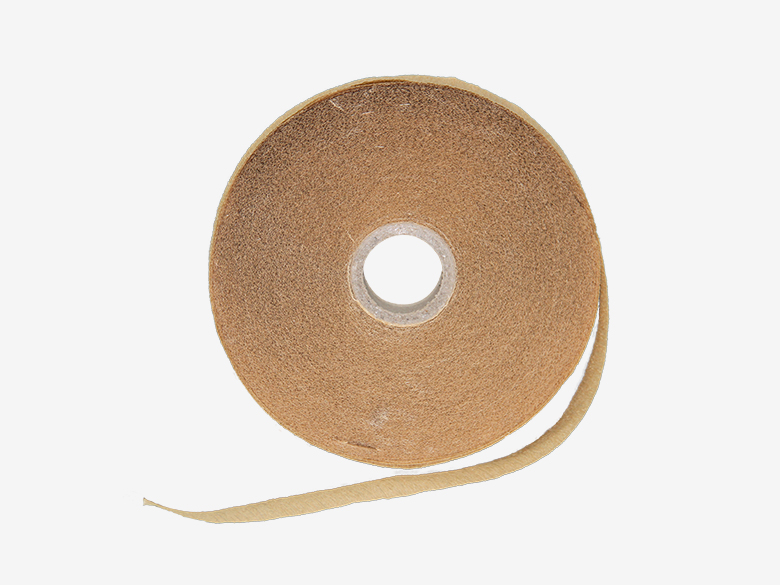

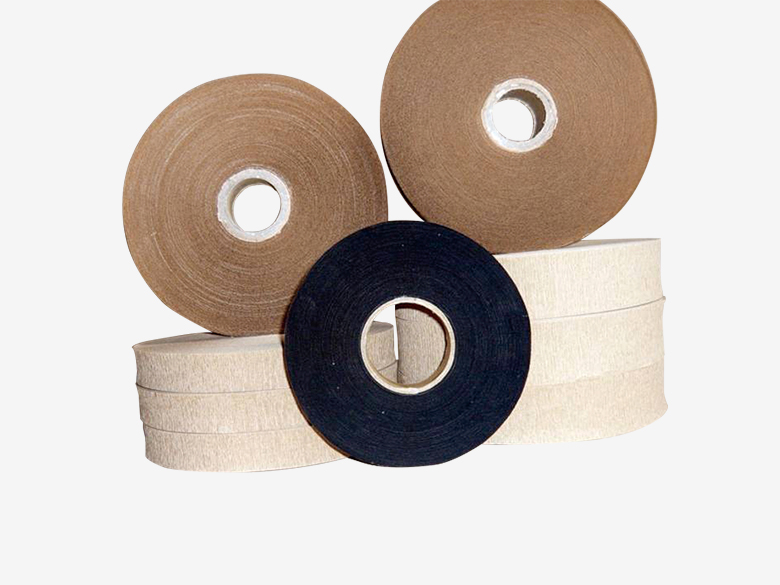

Insulation crepe paper（ PFCP22A ）
Standard:IEC 60554-3-3-1980
Regular Width: 960mm/860mm/500mm
Customizable width:20mm/25mm/40mm
Type:Transformer Crepe Paper/Semiconductor Crepe PaperThermal Thermal rating: Class A(105℃)
Color: natural brown/beige
Application:oil-immersed transformers

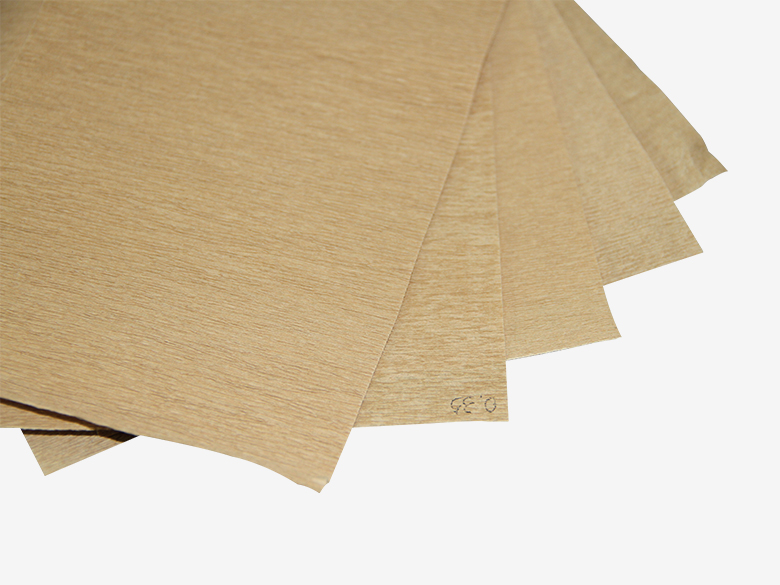

Crepe Paper is made of 100% sulphate wood pulp wet-copying, with undried flat network base paper through the wrinkling process and it has the advantages of good softness, not easy to break by bending, good elongation, good oil absorption and so on.Crepe Paper is widely used in oil-immersed transformers, instrument transformers, reactors and other parts of package insulation, especially as lead parts of the insulation package, thereby improving the electrical insulation and mechanical properties of the product structure.
Excellent Elongation and Flexibility:
The creped structure provides outstanding stretchability and bending adaptability, making it ideal for wrapping complex and irregular-shaped components.
High Oil Absorption and Impregnation:
The crinkled surface increases the contact area, allowing it to retain more insulating oil, which helps improve transformer heat dissipation and overall insulation performance.
High Electrical Insulation Strength:
Offers excellent dielectric properties, capable of withstanding high operating loads and thermal stress.
High Purity:
Made from insulating-grade wood pulp, ensuring stable electrical performance and minimal reactivity in humid environments.

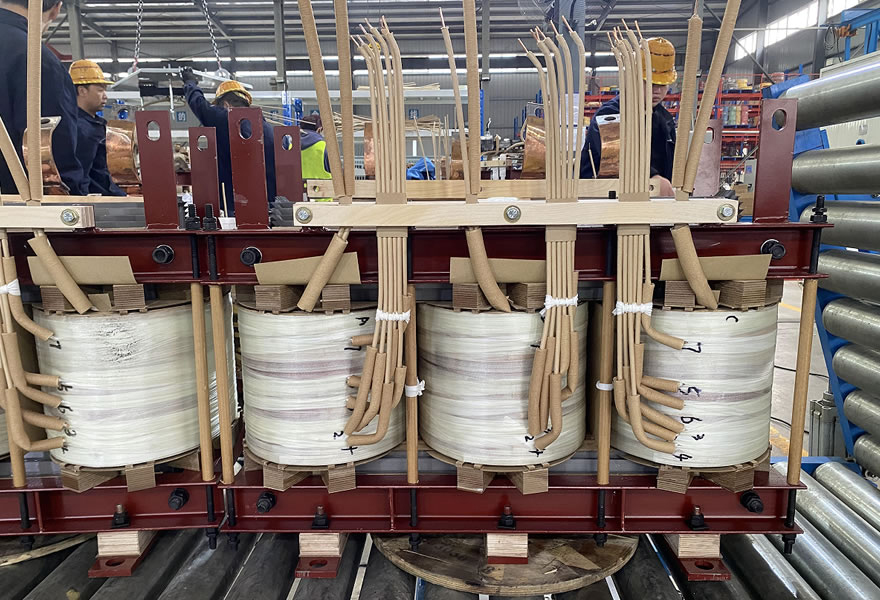

Transformer Manufacturing:
Widely used as a primary solid insulation material in oil-immersed transformers for interlayer insulation, lead insulation, and end insulation.
Cable Industry:
Applied in high-voltage cables for shielding and insulation wrapping.
Special Customization:

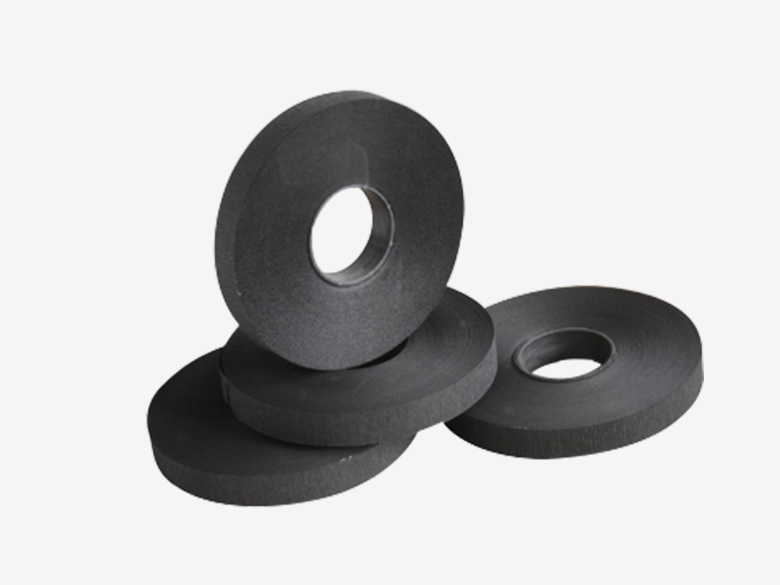

Black insulating crepe paper is used in applications requiring semi-conductive shielding.

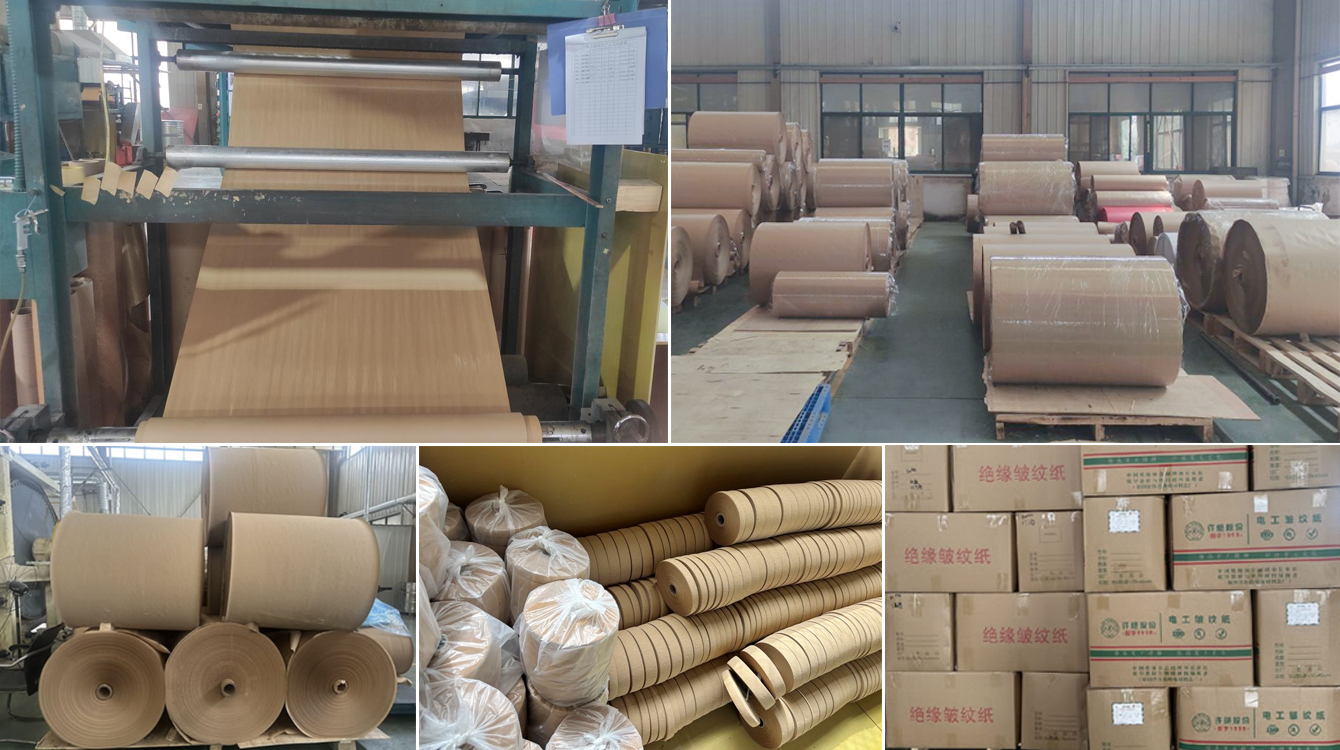

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Standard:JB/T 10441.3-2004 | ||||||
| No. | Properties | Unit | Base Paper Thickness | |||
| 0.05mm | 0.075mm | 0.13mm | ||||
| 1 | Thickness of Crepe Paper | mm | 0.35±0.05 | 0.38±0.08 | 0.70-0.90 | |
| 2 | Ash Content | % | ≤0.7 | ≤0.7 | ≤0.8 | |
| 3 | Moisture Content | % | ≤7.0 | ≤7.0 | ≤8.0 | |
| 4 | Water Extraction PH | – | 6.0-8.0 | |||
| 5 | Oil Contamination | % | <0.1 | |||
| 6 | Tensile Strength | MD | N | 30 | 40 | 50 |
| CD | N | 20 | 30 | 40 | ||
| 7 | Oil Absorption Height | MD | mm/10min | ≥7.0 | ||
| mm/60min | ≥30.0 | |||||
| CD | mm/10min | ≥20.0 | ||||
| mm/60min | ≥50.0 | |||||
| 8 | Crepe Ratio | % | 50 | |||
| 9 | Power Frequency Breakdown Voltage | V/layer | ≥950 | ≥1000 | ≥1000 | |
| 10 | Conductivity | ms/m | – | – | ≤10 | |
| 11 | Appearance density | g/m² | 60±10% | 110±10% | 120-150 | |
