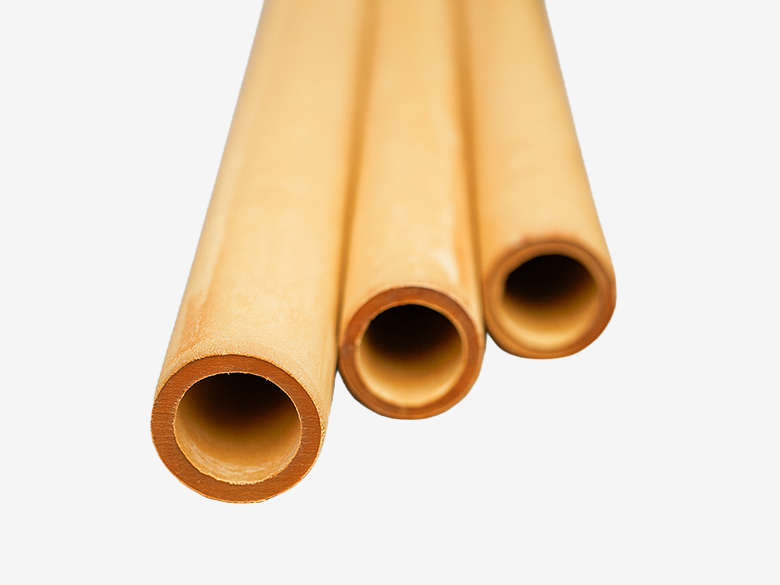

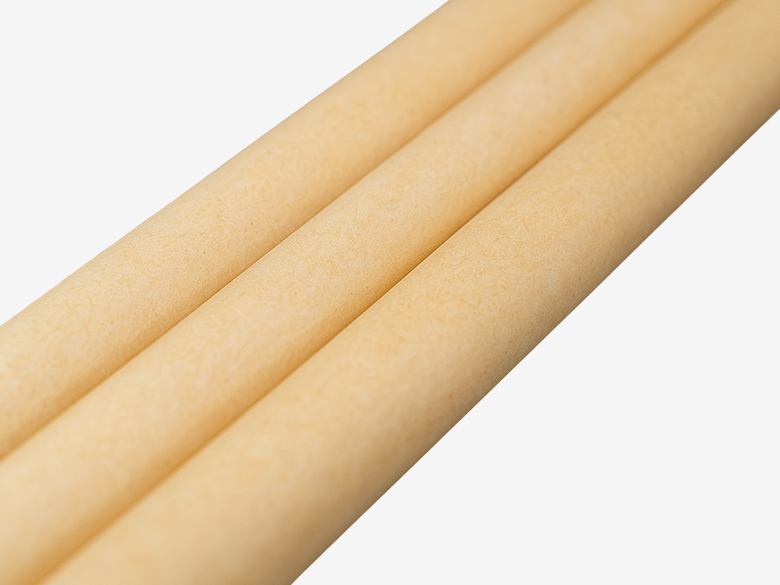

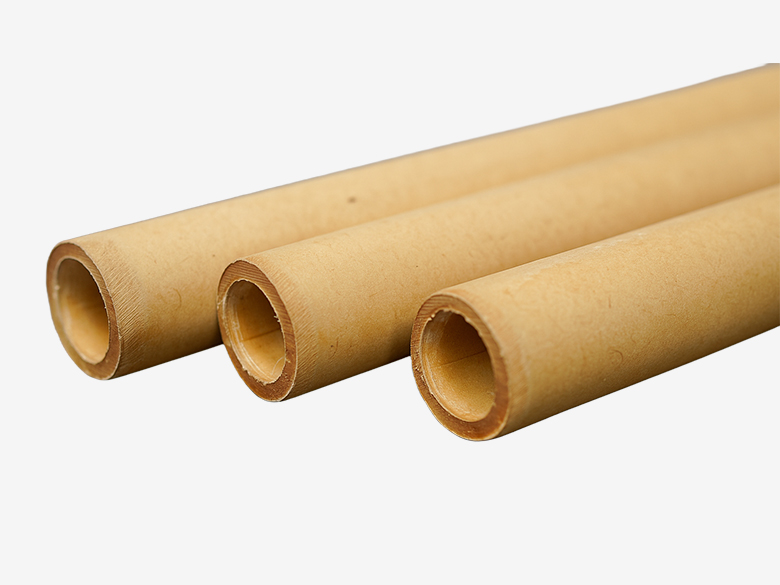

Phenolic paper laminated Tubee（ PFCP22A ）
Standard: IEC61212-2006, GB/T5132-2009
Regular Size: 1000mm(support customize)
Wall thickness: 2.5-200mm
Diameter:Ф9mm-Ф1030mm
Thermal rating: Class E(120℃)
Color: Nature
Application:Oil immersed transformer,switch gear,ect electrical insulation components
Phenolic paper tubes, fully known as phenolic resin paper-based laminated tubes, are a layered product made by winding and curing insulating paper (as the base material) with phenolic resin (as the binder) under high temperature and high pressure.
Excellent Insulation Performance: Possesses high dielectric strength and strong voltage resistance, making it an excellent insulating material.
High Mechanical Strength: Hard and tough with low specific gravity, offering higher compressive and flexural strength than ordinary plastics or wood.
Good Heat Resistance: Belongs to the category of thermosetting plastics with relatively high heat resistance. It can typically operate long-term at Class E (120°C) insulation levels, with the ability to withstand higher temperatures for short periods.
Corrosion Resistance: Exhibits good resistance to oil, weak acids, weak alkalis, and organic solvents.
Phenolic Paper Laminated Tube is suitable for mechanical, electrical, electrical equipment for insulation structure parts and components, and can be used in transformer oil.

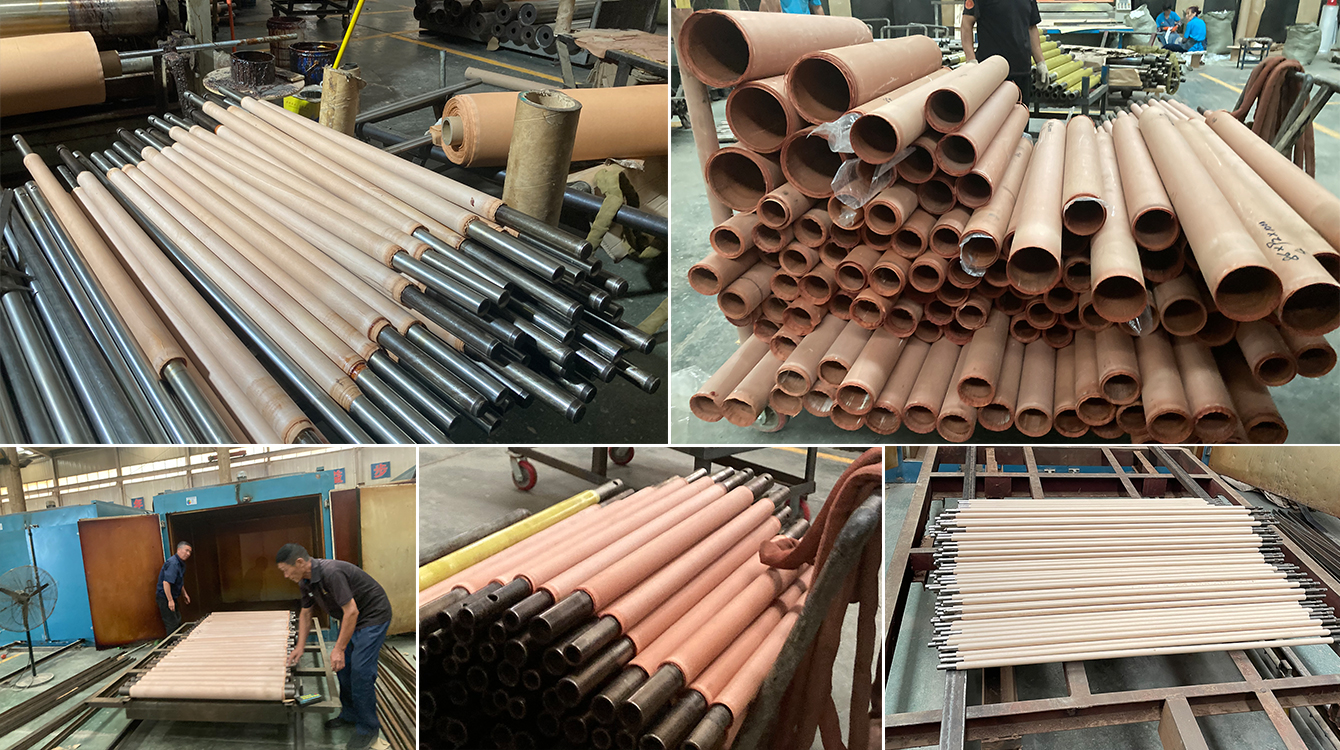

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

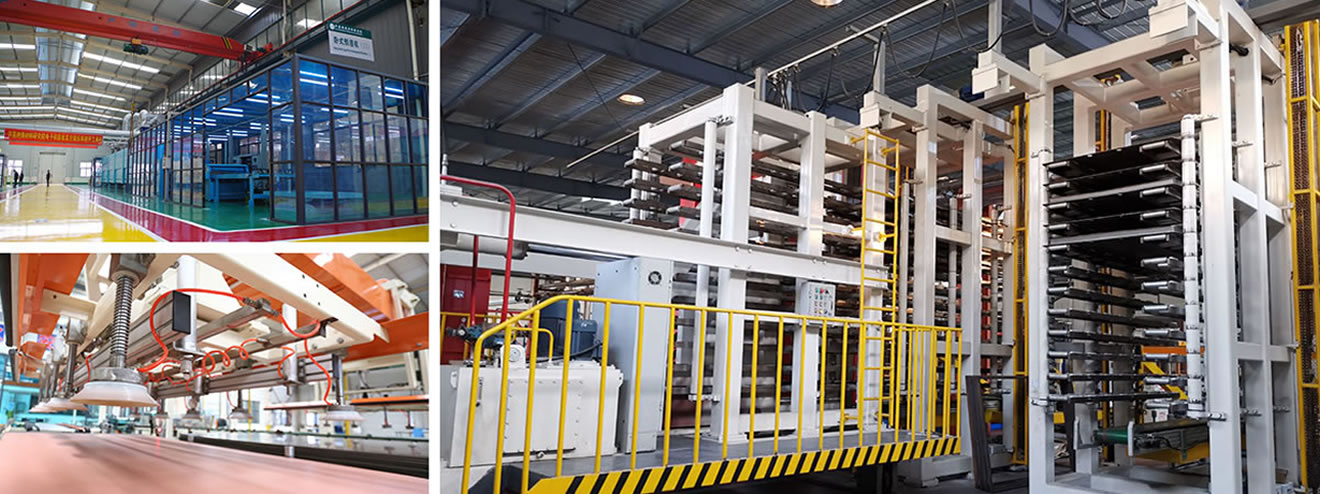

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

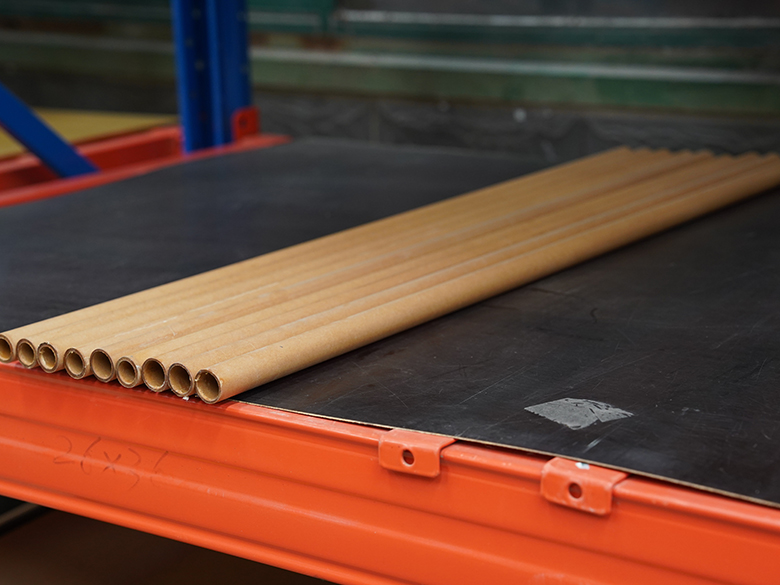

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
We are a professional manufacturer of phenolic paper tubes, which can be customized according to your needs
| Number | Item | Unit | Value |
| 1 | Density | g/cm3 | 1.0-1.1 |
| 2 | Flexural Strength at Perpendicular Lamination （Under Normal） | MPa | ≥90 |
| 3 | Axial Compressive Strength | MPa | ≥60 |
| 4 | Breakdown Voltage at Parallel Lamination （Transformer Oil at 90℃） | Kv | ≥25 |
| 5 | Dielectric Strength at Perpendicular Lamination （Transformer Oil at 90℃） | KV/mm | ≥8 |
| （Wall Thickness: 3.0mm, Bore Size: 20mm） | |||
| 6 | Dielectric Loss Factor（50Hz） | – | ≤0.03 |
| 7 | Water Absorption (3mm) | % | ≤1 |
| 8 | Thermal Index | – | 120 |
| Name | Unit | Value |
| Minimum Wall Thickness | mm | 2 |
| Maximum Wall Thickness | mm | 80 |
| Minimum Bore Size | mm | 10 |
| Maximum Bore Size | mm | 1200 |
| Length | mm | 1000 |
