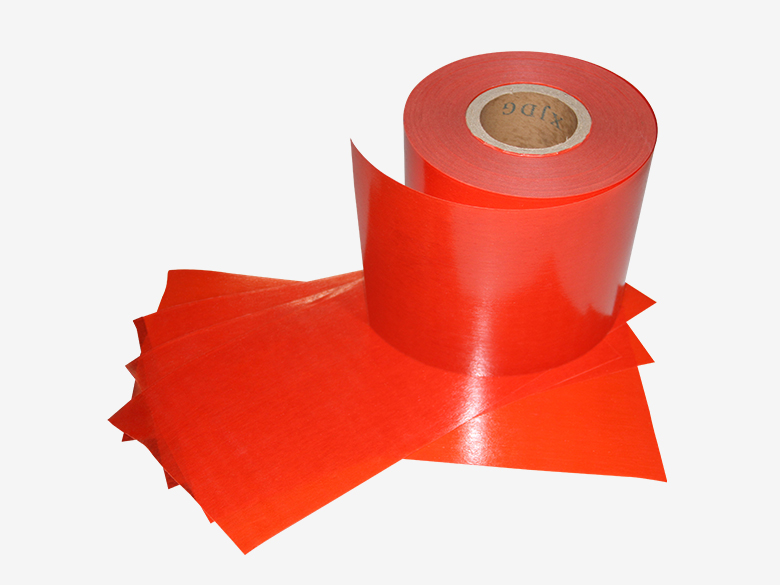

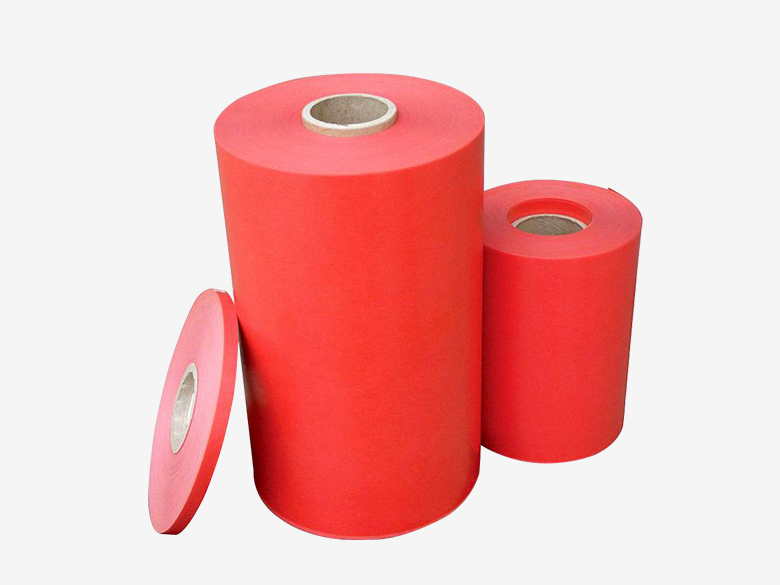

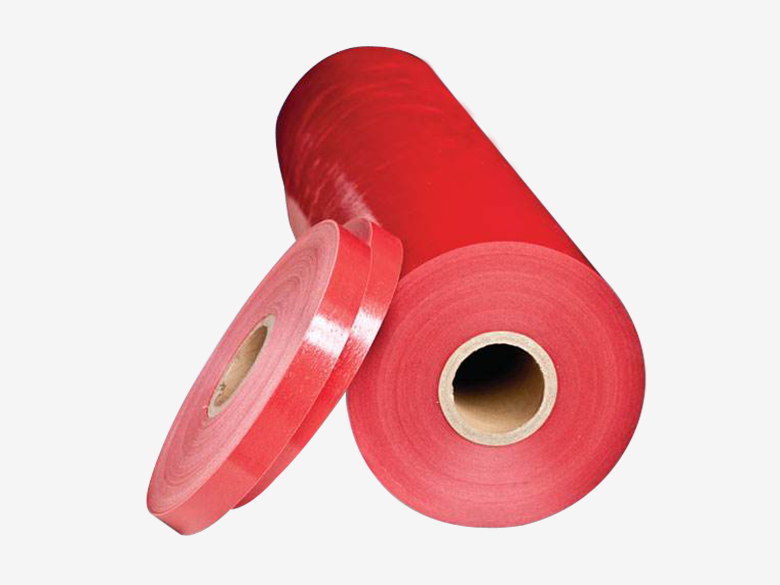

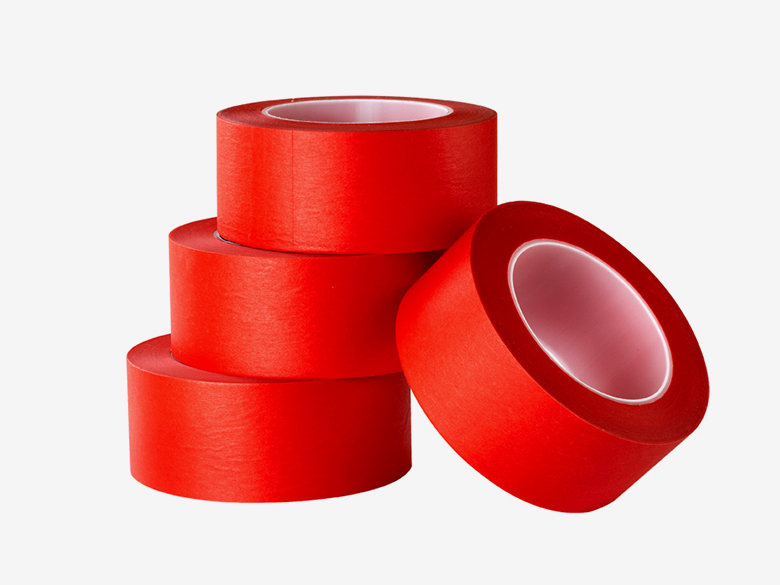

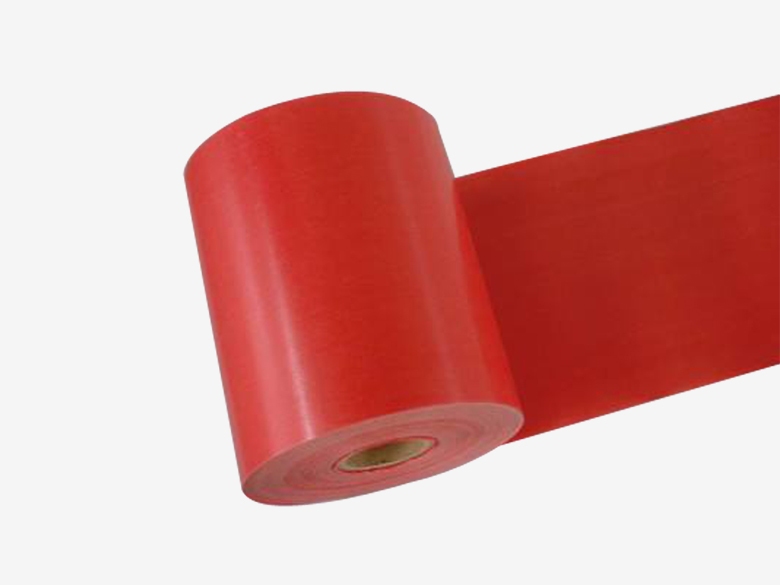

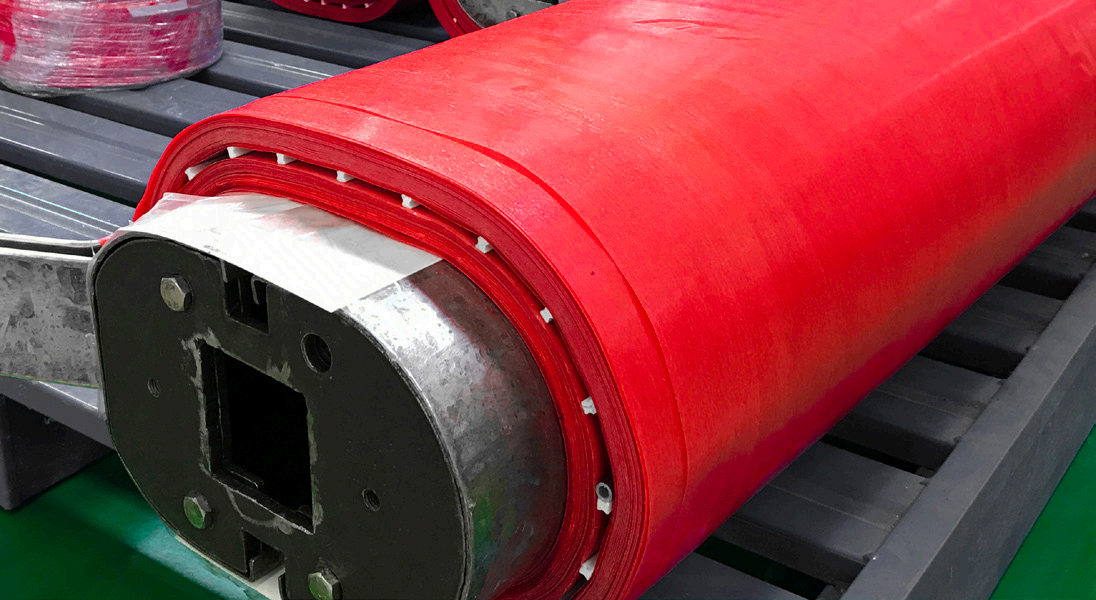

DMD Epoxy Prepreg is an electrical insulating material produced by impregnating DMD flexible composite with heat-resistant epoxy resin, followed by a pre-drying process to achieve a B-stage (semi-cured) condition. It remains flexible at room temperature, but upon the application of heat and pressure, it rapidly cures and develops excellent adhesion strength.

DMD Epoxy Prepreg  Properties

• Superior Bonding Strength: During the curing process, the epoxy resin undergoes cross-linking, creating a tight bond with metal conductors like copper or aluminum foil to form a solid, integrated structure.
• Thermal Stability: Typically rated for Class F (155°C)or Class H (180°C), maintaining excellent electrical and mechanical properties under high temperatures.
• Low Shrinkage & Volatility: It produces almost no low-molecular-weight volatiles during curing, resulting in minimal shrinkage and high dimensional stability for the equipment.
• High Dielectric Strength: Typical breakdown voltage ranges from 10kV to over 20kV(depending on thickness), offering outstanding dielectric performance.

Application of oil DMD Epoxy Prepreg

• Transformers: Widely used for interlayer insulationin the low-voltage coils of dry-type transformers. It provides both insulation and mechanical reinforcement against short-circuit forces.
• Motors & Generators: Used as slot insulation, phase-to-phase insulation, and end-winding support for Class F motors.
• Other Equipment: Applied in reactors, electrical control cabinets, and other devices requiring high temperature resistance and reliability.

Why Choose us

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

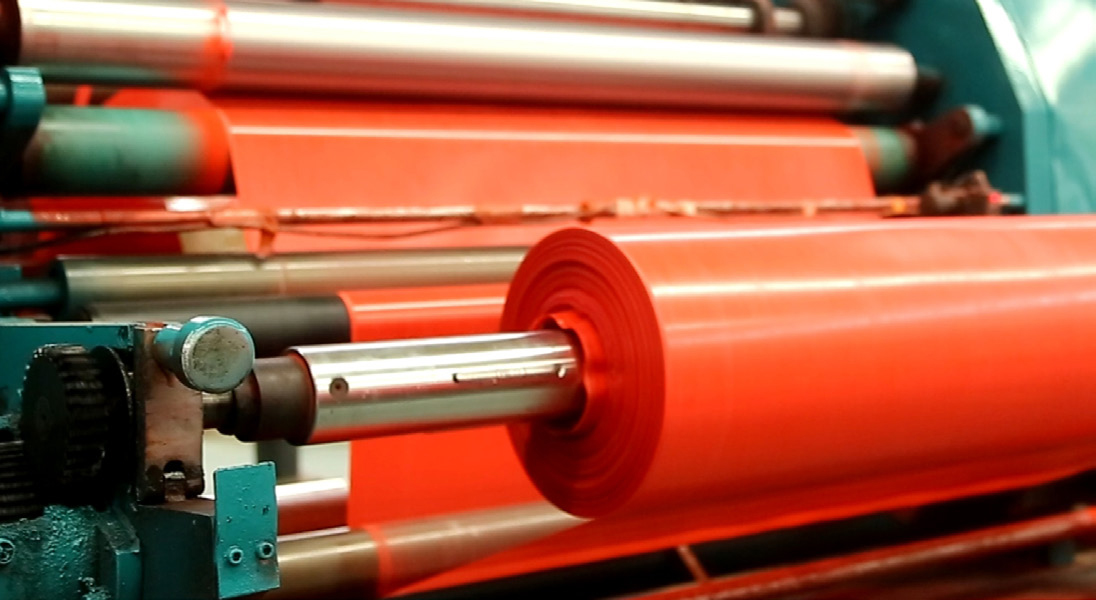

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.

Our Certificates

Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.

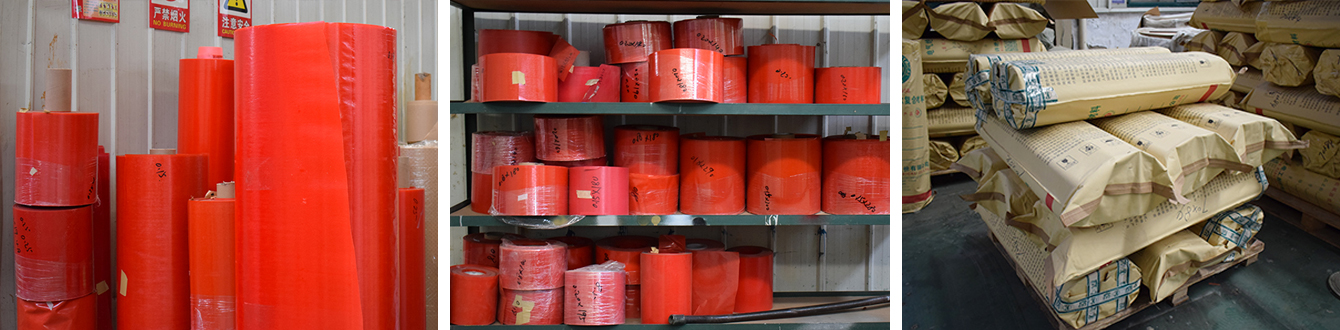

Warehouse & Packaging
