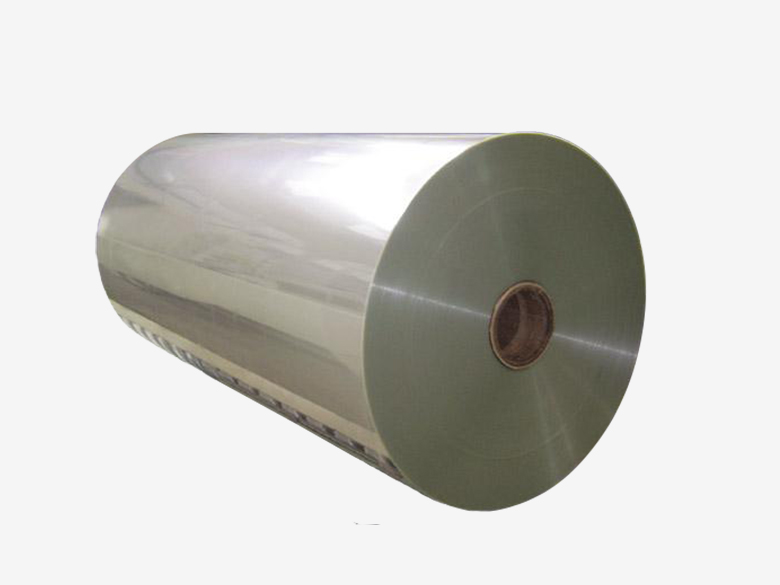

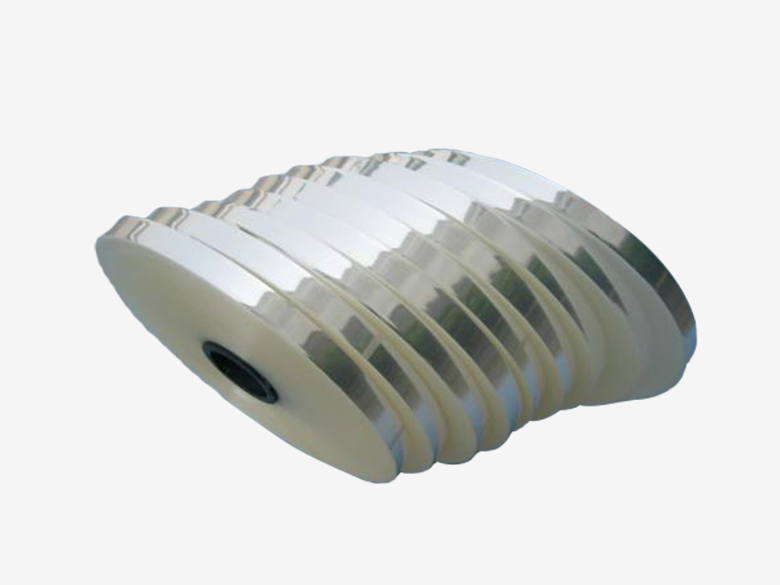

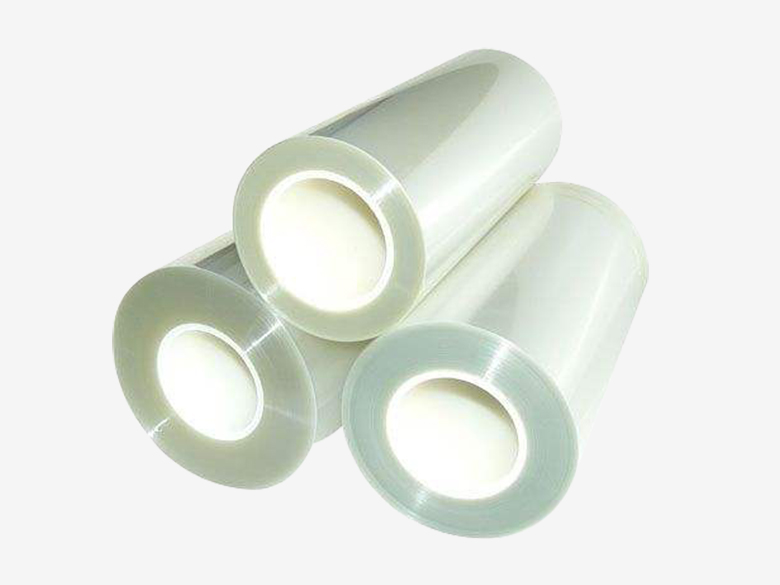

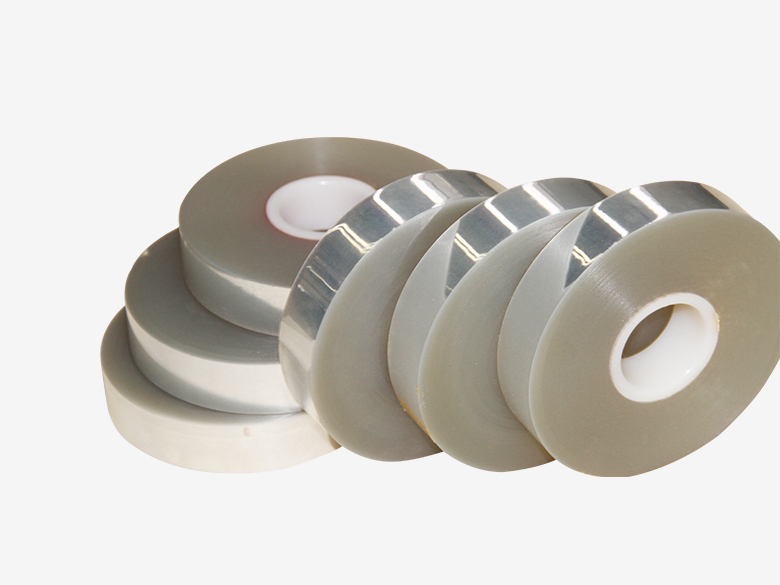

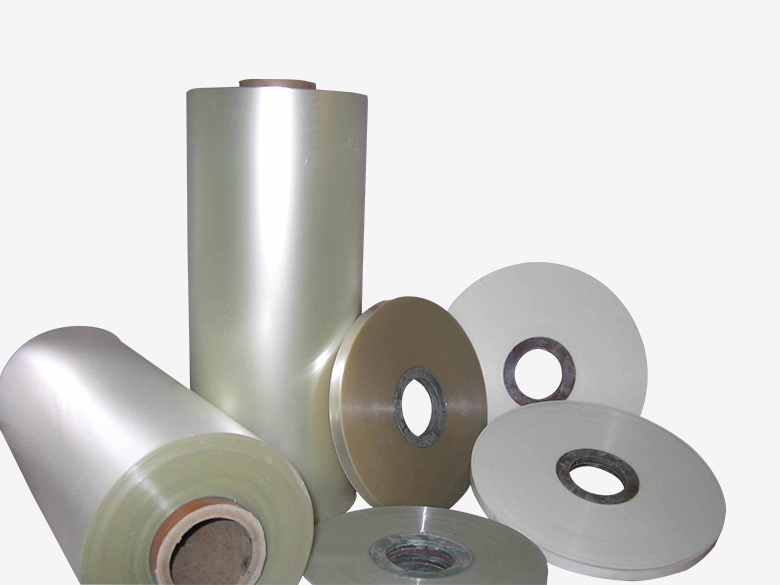

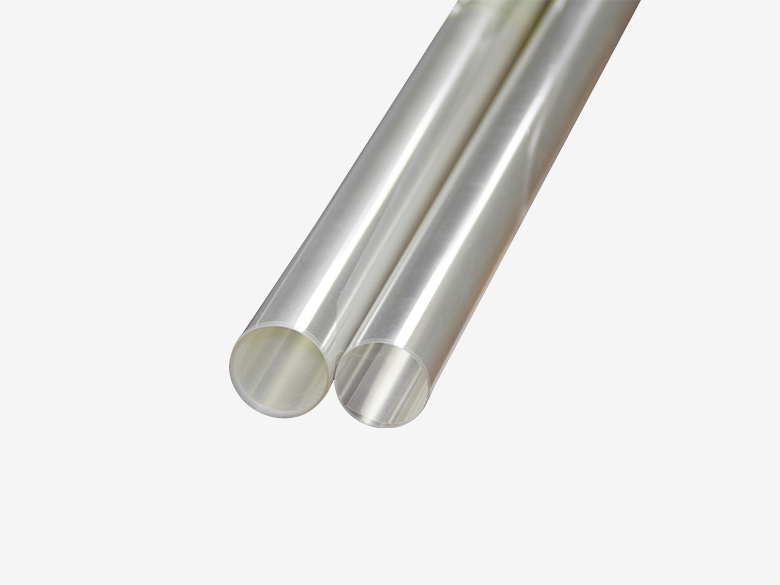

Name: Polyester film
Width: 1105mm(Support customization)
Thickness: 50/75/100/125/188/250/300/350(µm)
Heat resistance: ClassA (105 °C)/ClassB(120°C)
MOQ: 500KG
Application: medium-size motors，Electronic Components,Cables & Tapes
Polyester Film (commonly known as PET film) is a high-performance polymer plastic film made from polyethylene terephthalate (PET) through extrusion and biaxial stretching processes. It is characterized by high mechanical strength , excellent transparency, stable physical properties, outstanding temperature resistance (both high and low), and superior electrical insulation. It is widely used in packaging, electrical and electronic applications, optical materials, and industrial base materials.
Thermal Class: Standard electrical-grade PET film is rated as Class E (120°C).
Dielectric Strength: Features exceptionally high breakdown voltage (typically ), ranking among the best for thin-film materials.
Mechanical Toughness: Extremely high tensile strength (comparable to aluminum foil) with excellent tear resistance and dimensional stability.
Chemical Resistance: Highly resistant to most oils, solvents, and dilute acids, with very low moisture absorption.
PET film is widely used for motor winding insulation, interlayer insulation in transformers, capacitor film layers, and protective layers for electronic components. It is a reliable and high-performance insulating material.
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

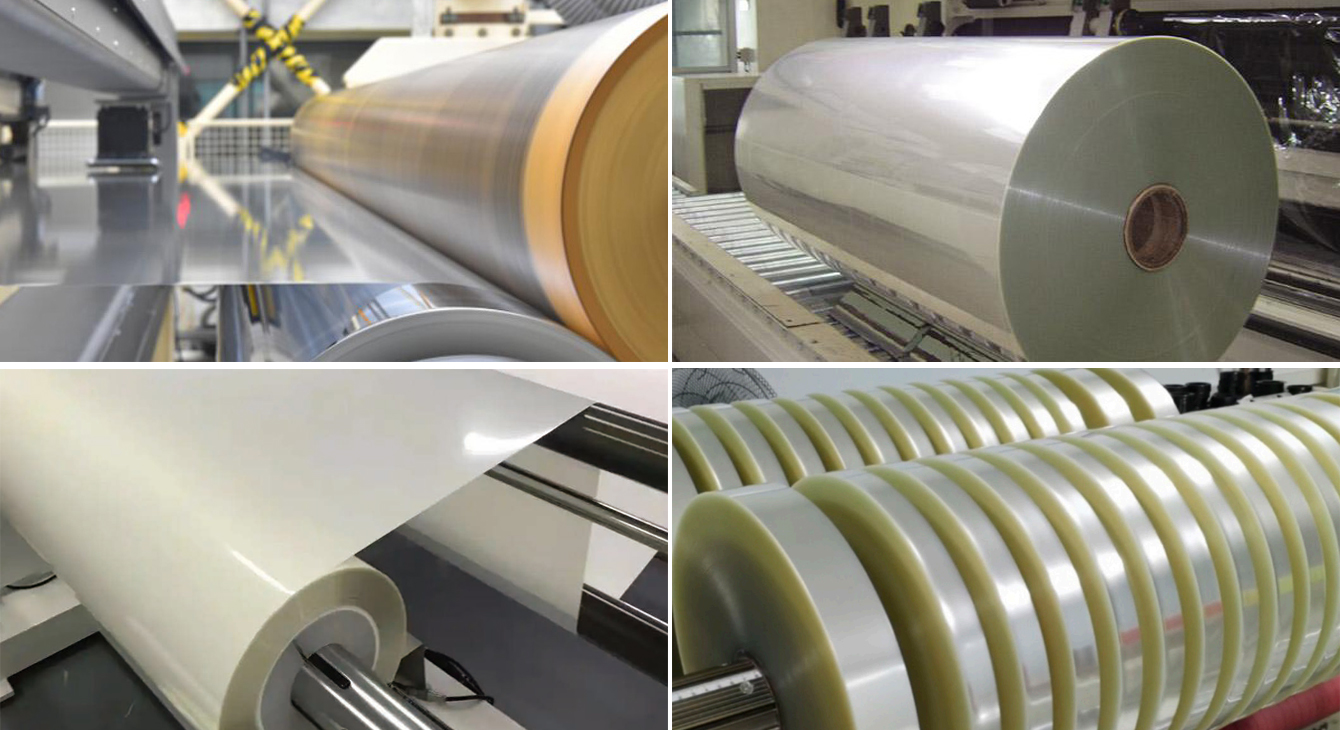

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.

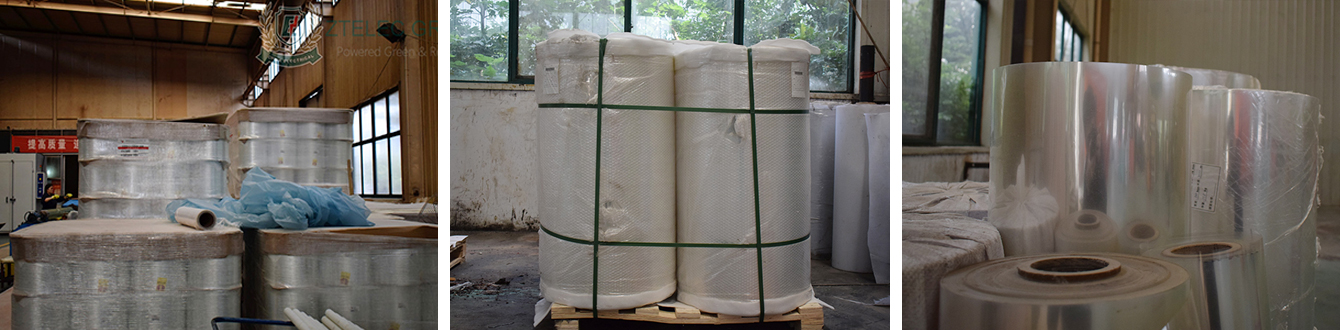

Packed in rolls in cartons, stored at room temperature away from sunlight and fire, storage period 12 months.
| Properties | Item | Unit | Index | ||||||||
| Specifications | Total thickness | µm | 50 | 75 | 100 | 125 | 188 | 250 | 300 | 350 | |
| Physical properties | Tensile strength | MD | ≥MPa | 210 | 205 | 200 | 200 | 180 | 170 | 165 | 160 |
| CMD | ≥MPa | 210 | 205 | 200 | 200 | 185 | 175 | 170 | 165 | ||
| Hot-shrinkage rate | MD | ≥% | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
| CMD | ≥% | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Elongation at beak | MD | ≥% | 105 | 115 | 115 | 125 | 125 | 130 | 135 | 145 | |
| CMD | ≥% | 100 | 110 | 110 | 115 | 115 | 120 | 125 | 130 | ||
| Electrical properties | Frequency electrical strength | ≥KV/mm | 210 | 170 | 140 | 140 | 110 | 95 | 85 | 80 | |
| Temperature index | ℃ | 105℃ | |||||||||
