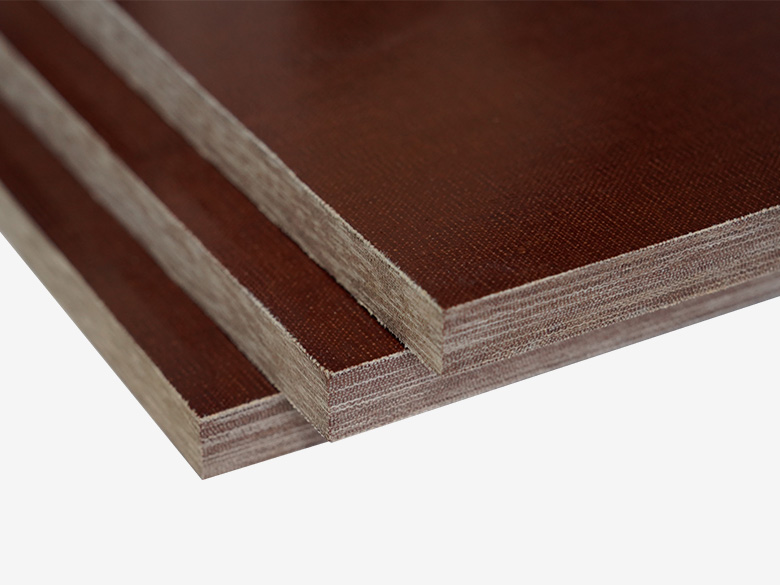

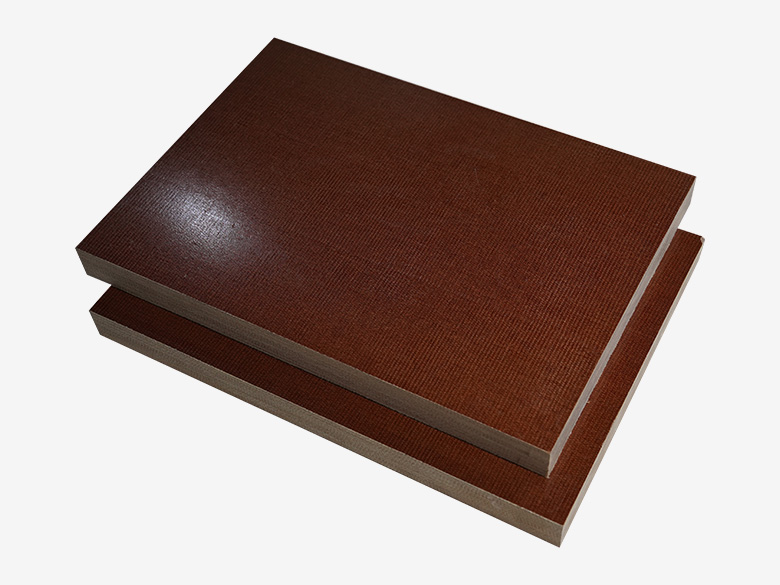

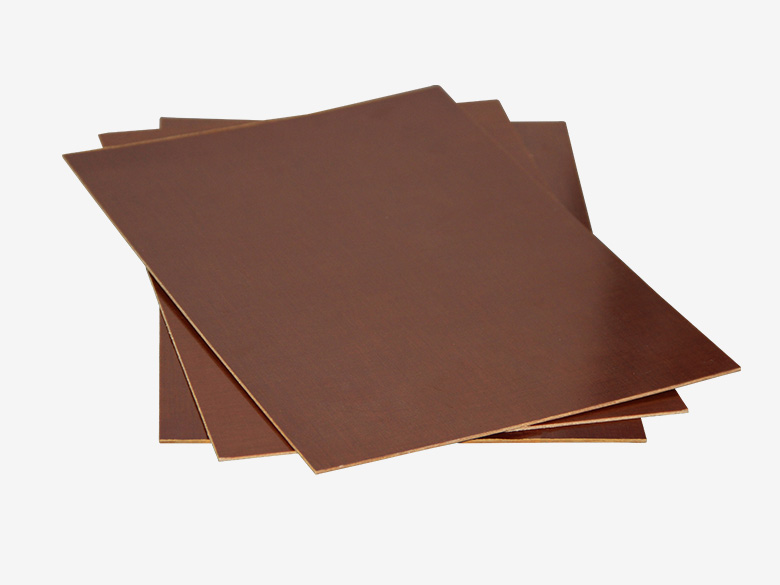

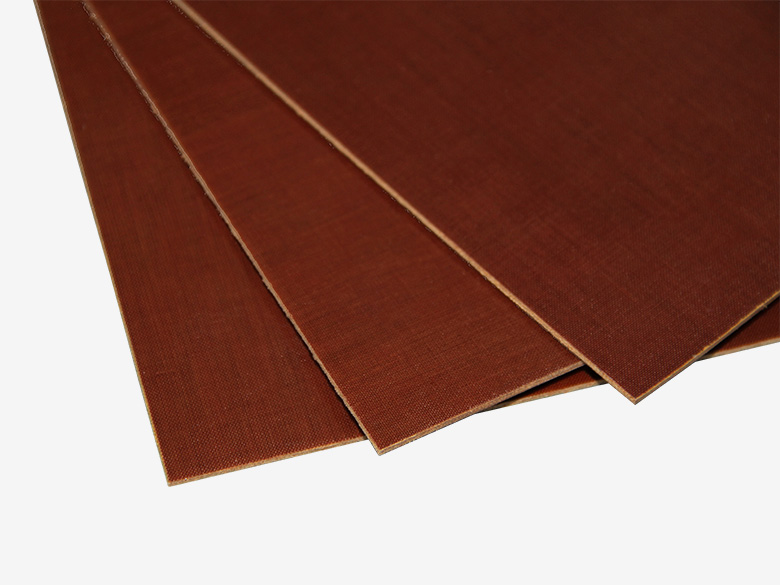

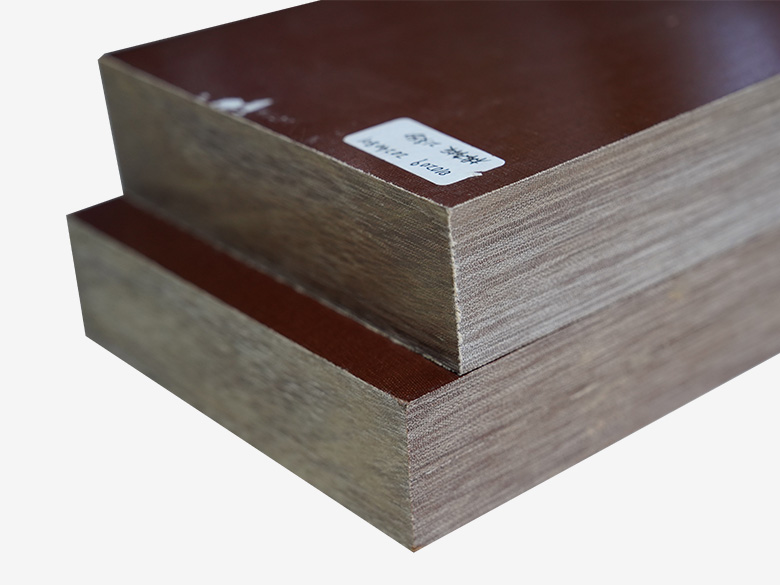

Name:Phenolic Cotton Cloth Sheet(PFCC201/PFCC202/PFCC203/PFCC305 )
Standard:IEC60893-2:2003/GB/T 1303.6-2009
Thickness :1mm-40mm
Sizes: 1020*2020mm/1220*2440 mm(support customization)
Heat resistance: Class E (120 ° C)
MOQ:500KG /Free Samples!

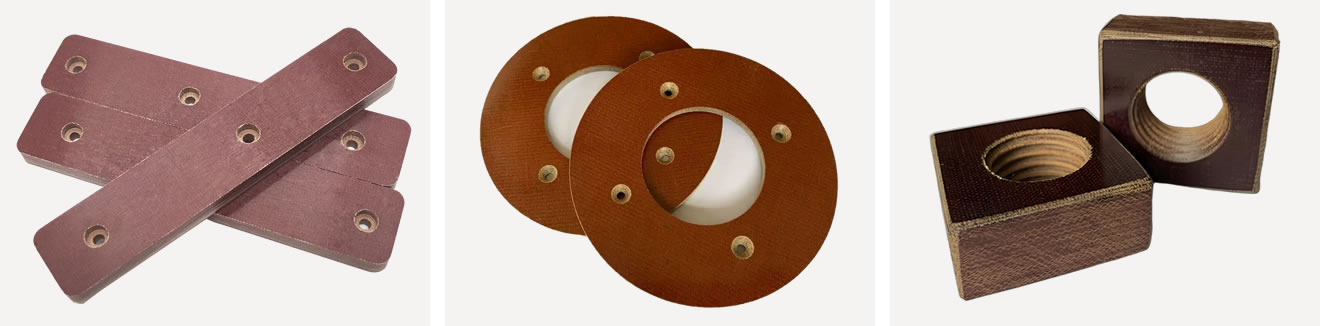

Application: Electric motors, Switchgear, Mechanical structural parts
Phenolic Cotton Cloth Sheet is made of cotton cloth impregnated with phenolic resin by hot pressing. It has strong mechanical properties, oil resistance and dielectric properties.
It is suitable for machinery, motors, electrical equipment for insulation structure parts, and it can be used in transformer oil. Among them, PFCC203 high-strength phenolic cotton cloth laminate is suitable for mechanical equipment for running, anti-vibration parts.
1. High electrical and mechanical performance.
2. Easy for fabricaion, good dimentional stability, physical strength, resiliency.
3. Better machinability than other product.
| IEC | Characteristics |
| PFCC201 | Coarse cotton cloth, general mechanical and electrical properties |
| PFCC202 | Medium-fine cotton cloth, strong mechanical and electrical properties |
| PFCC203 | Fine cotton cloth, high mechanical properties, wear resistance |
| PFCC305 | Electrotechnical fine cotton cloth, high mechanical properties, strong dielectric properties |
Phenolic cotton cloth sheets are mainly used as structural insulation and wear-resistant components in power equipment, electric motors, switchgear, mechanical structural parts, and electronic devices.
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

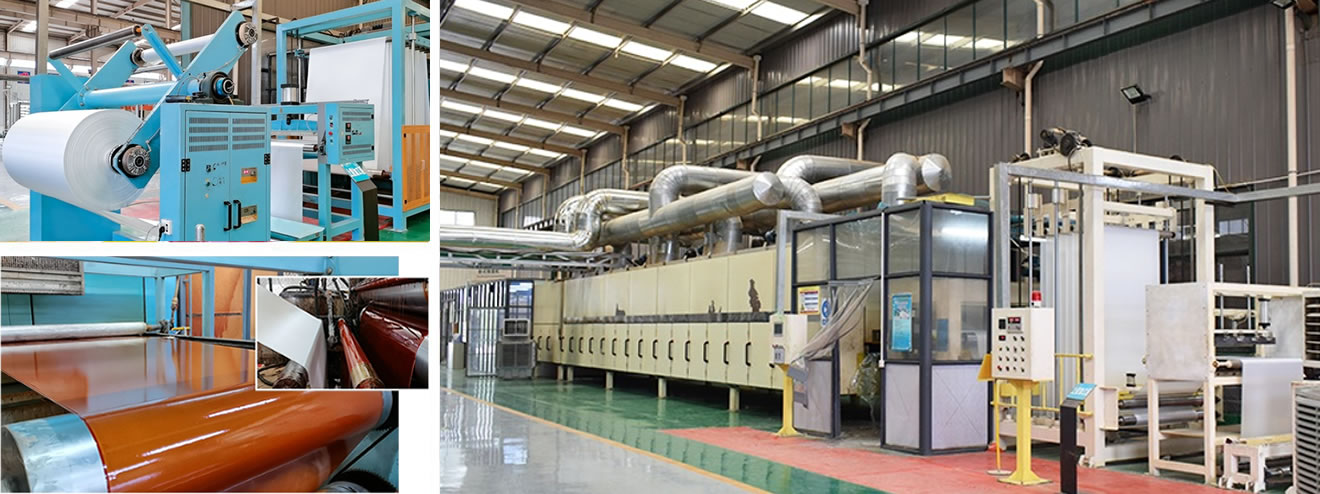

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

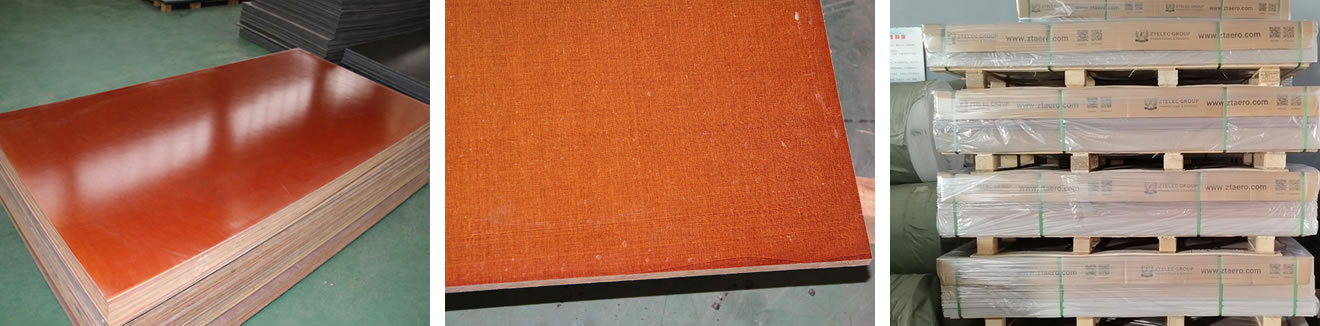

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Standard | GB/T 1303-2009/ IEC60893-2003 | ||||||
| Basic Information | Chinese Name | 3025 | 3025A | 3026 | 3027 | 3021 | |
| IEC | PFCC201 | PFCC202 | PFCC203 | PFCC305 | PFCP201 | ||
| Basic Material | Cloth | Paper | |||||
| Resin | Phenolic | Phenolic | |||||
| Color | Brown | Red Brown | |||||
| No. | Test Item | Unit | Value | Value | |||
| 1 | Density | g/m³ | 1.3~1.4 | 1.25~1.4 | |||
| 2 | Vertical Layer Bending Strength(normal) | Mpa | ≥100 | ≥90 | ≥110 | ≥125 | ≥120 |
| 3 | Parallel Layer Impact Strength (simply supported beam method) | KJ/m² | ≥7.8 | ||||
| 4 | Vertical Layer Electrical Strength (90℃ transformer oil)(1mm thickness) | Kv/mm | ≥5.1 | ≥5.1 | ≥5.1 | ≥5.1 | ≥15.8 |
| 5 | Parallel Layer Breakdown Voltage (90℃ transformer oil) | kv | ≥20 | ≥35 | |||
| 6 | Dielectric Constant (50Hz) | – | ≤5.5(1MHZ) | ≤5.5(1MHZ) | |||
| 7 | Insulation Resistance after Immersion | Ω | ≥5*107 | ≥5*107 | |||
| 8 | Proof Tracking Index(PTI) | – | ≥100 | ≥100 | |||
| 9 | Temperature Index | – | 120 | 120 | |||
| 10 | Water Absorption (1-20mm thickness) | mg | 206~406 | 136~277 | 180~970 | ||
| Note: Range values are measured for different thicknesses | |||||||
