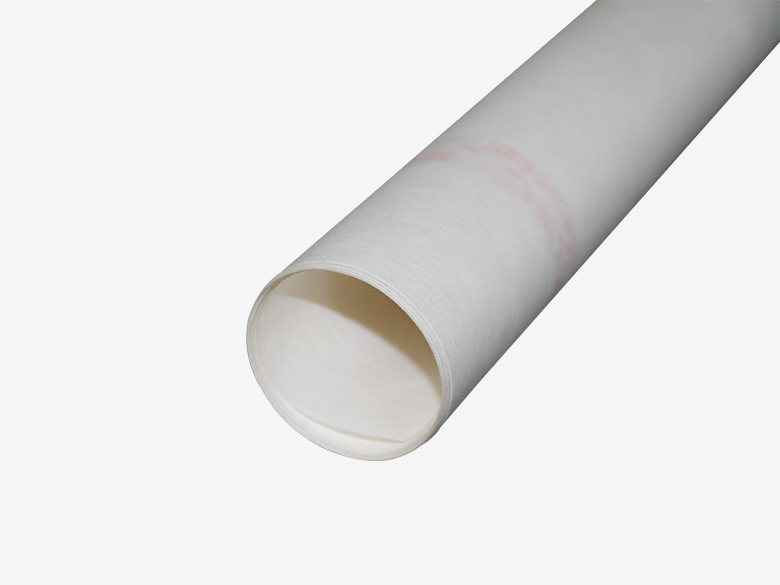

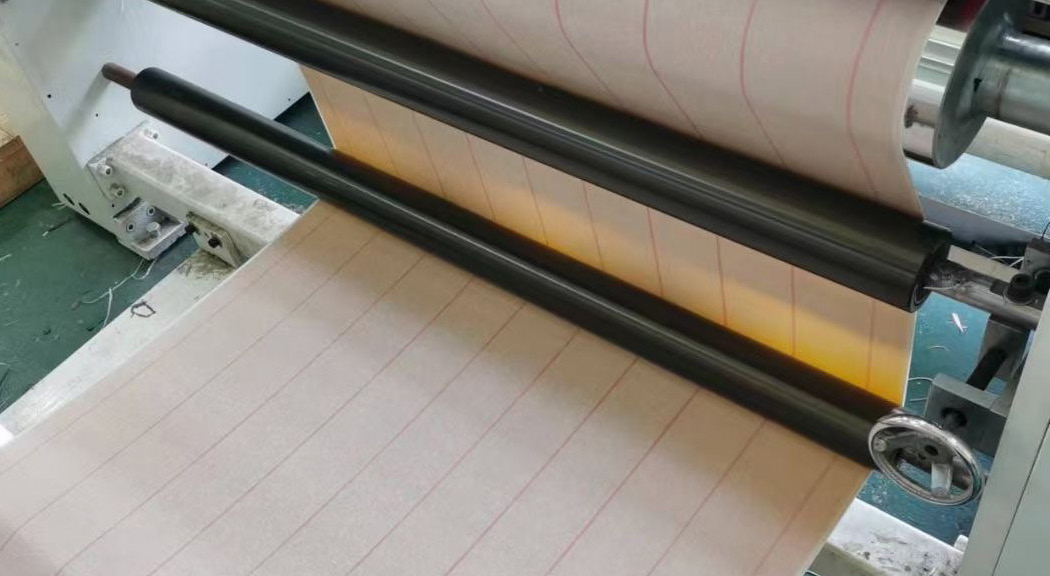

Three-layer composite ：Nomex paper / Polyester film / Nomex paper
Width: 10-914mm(Support customization)
Thickness:0.13/0.15/0.18/0.20/0.22/0.25/0.30/0.35(mm)
Heat resistance: ClassF (155 °C)/ClassH (180 °C)
Color: White with orange line or yellow line
MOQ:500KG
Application: Electrical insulation for motors, transformers, generators, etc

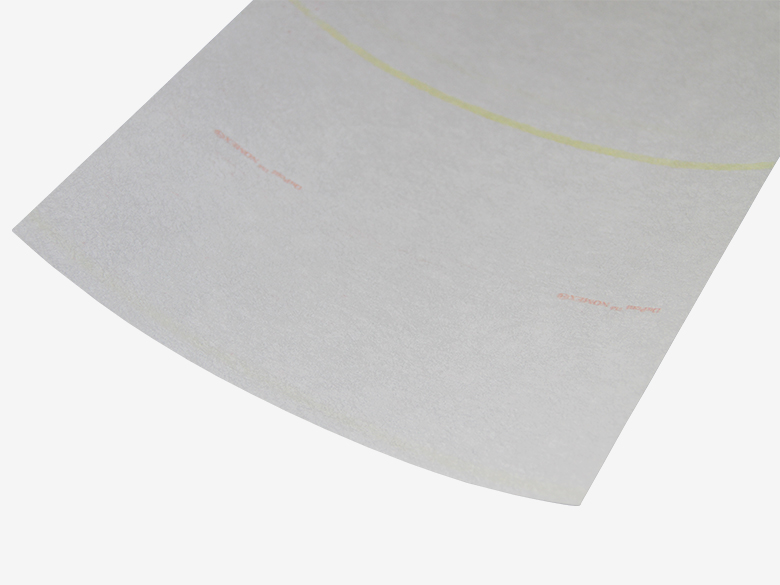

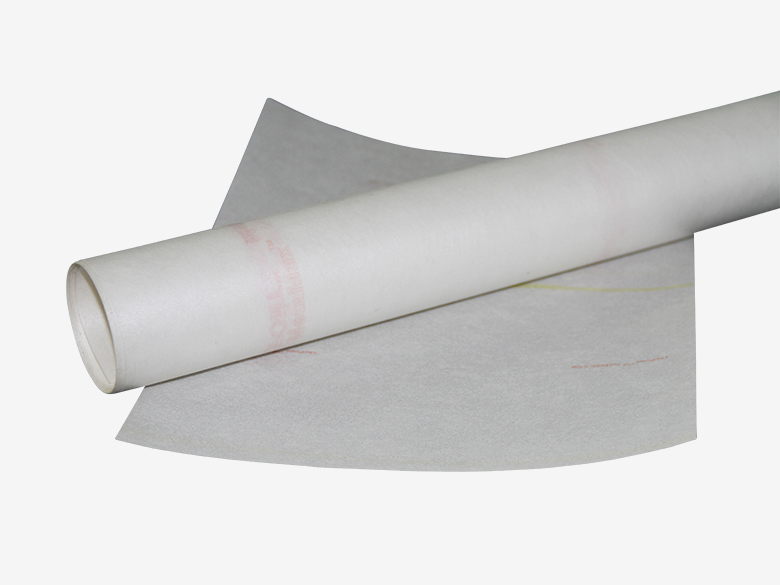

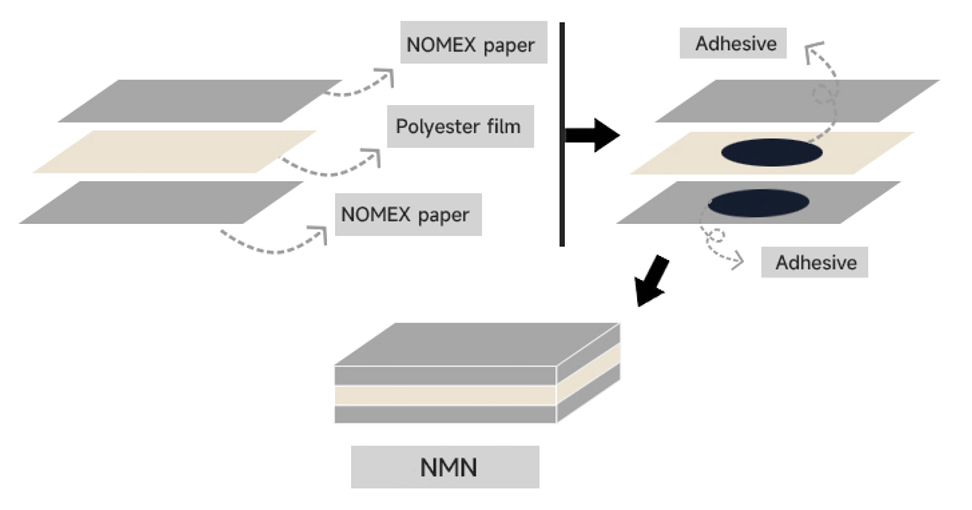

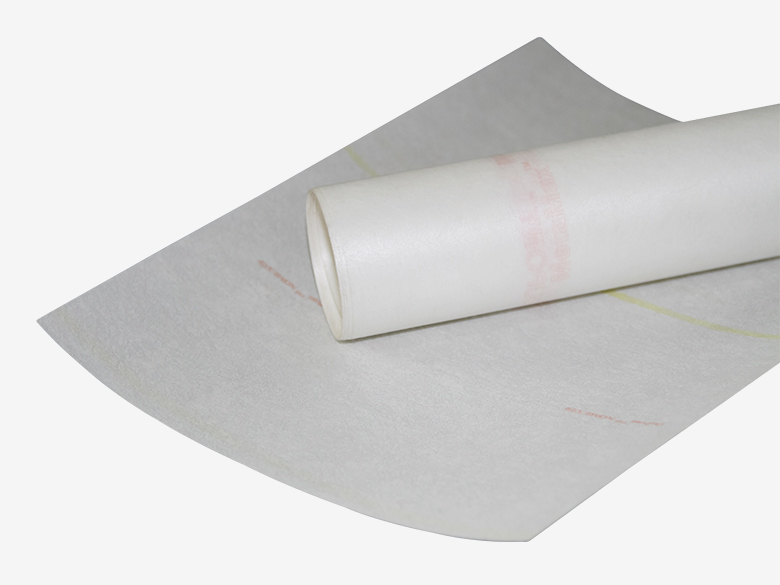

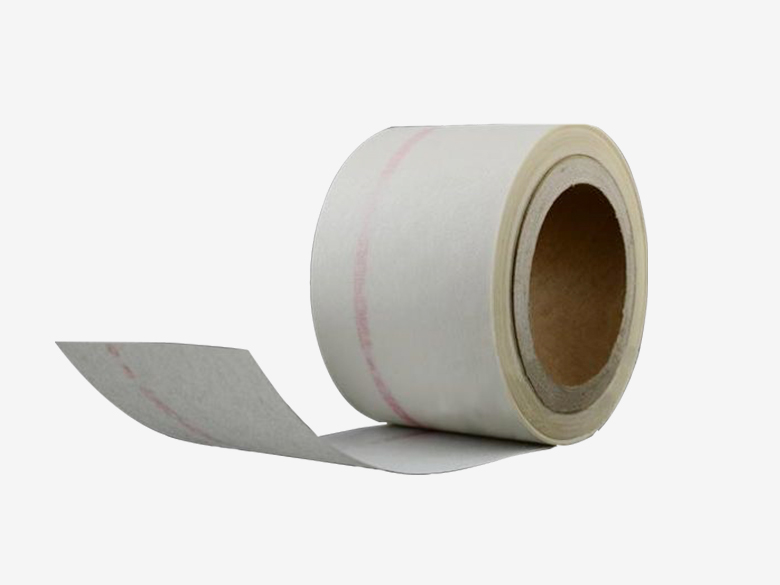

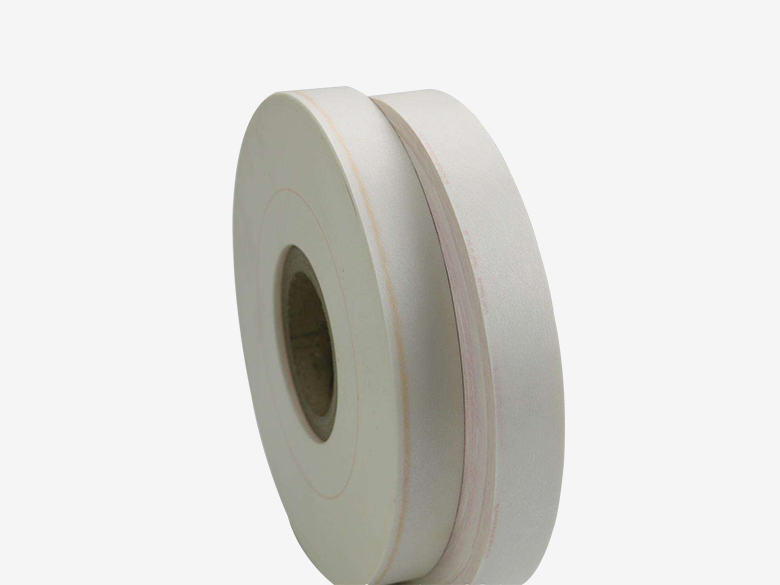

NMN Composite material is three- layer composite material with Nomex® paper adhered to both sides of polyester film.It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film.The product is used as insulation material for F/H class electrical machines.
High thermal class: typically Class F (155°C) or even Class H (180°C)
Excellent electrical insulation performance: high dielectric strength and stability
Good mechanical properties: high tensile strength and wear resistance
Outstanding thermal aging resistance: stable performance during long-term operation
Good processability: easy for punching, bending, and forming
NMN composite material is widely used in medium- and high-voltage motors, generators, and transformers, mainly for:

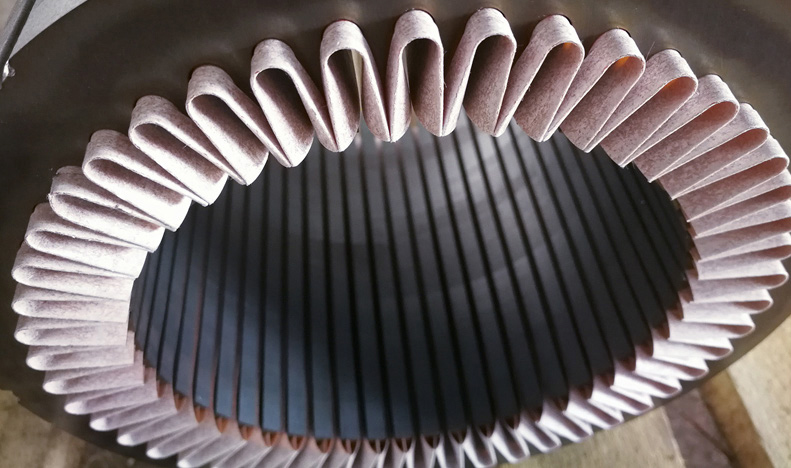

Motor slot insulation
Phase insulation
Turn insulation
Winding liner insulation
Transformer layer and interphase insulation
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.

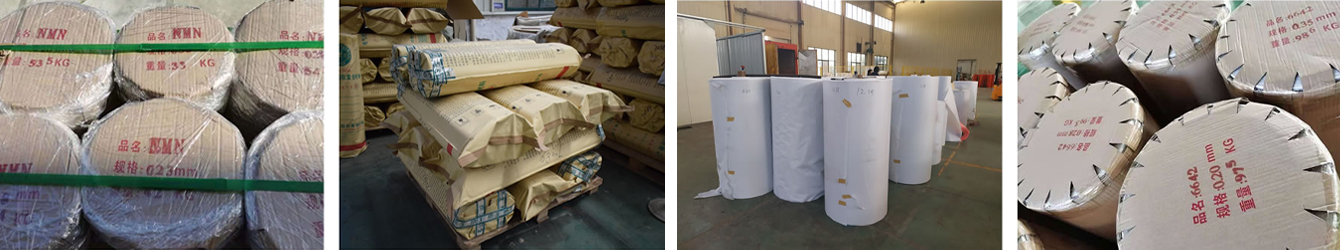

Packed in rolls in cartons, stored at room temperature away from sunlight and fire, storage period 12 months.
| No. | Item | Unit | Index | ||||||
| 1 | Nominal thickness | mm | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | ||
| 2 | Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.04 | ||||
| 3 | Apparent density | g /m2 | 180±25 | 240±30 | 300±40 | 350±50 | 430±50 | ||
| 2 | Tensile strength | MD | No bending | N/10mm | ≥150 | ≥180 | ≥220 | ≥270 | ≥320 |
| CD | No bending | ≥90 | ≥130 | ≥180 | ≥200 | ≥250 | |||
| 3 | Elongation | MD | No bending | % | ≥10 | ≥12 | |||
| CD | No bending | ≥15 | ≥18 | ||||||
| 4 | Breakdown voltage | No bending | KV | ≥7 | ≥11 | ≥13 | ≥15 | ≥20 | |
| 5 | Normal adhesion | – | No delamination | ||||||
| 6 | adhesion（180±2℃ 10min） | – | No delamination, no foaming, no glue flow | ||||||
| 7 | Long-term heat resistance index/ Temperature index （TI） | ℃ | 155℃ | ||||||
