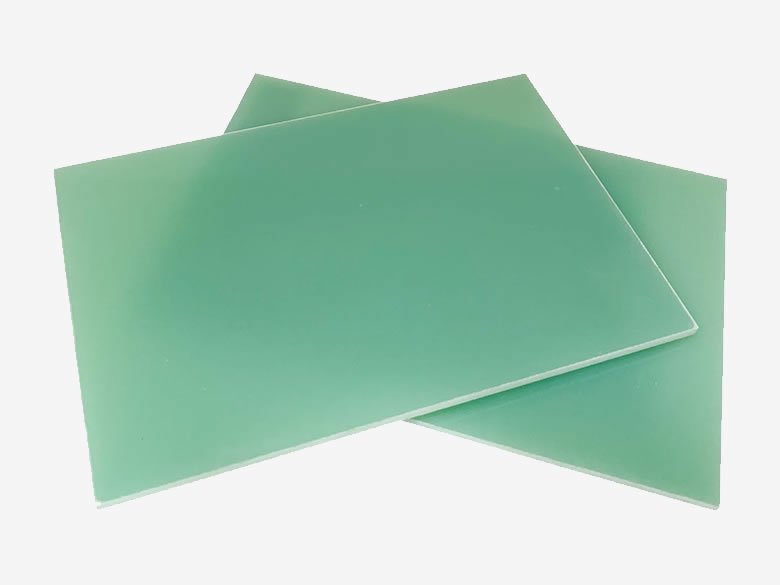

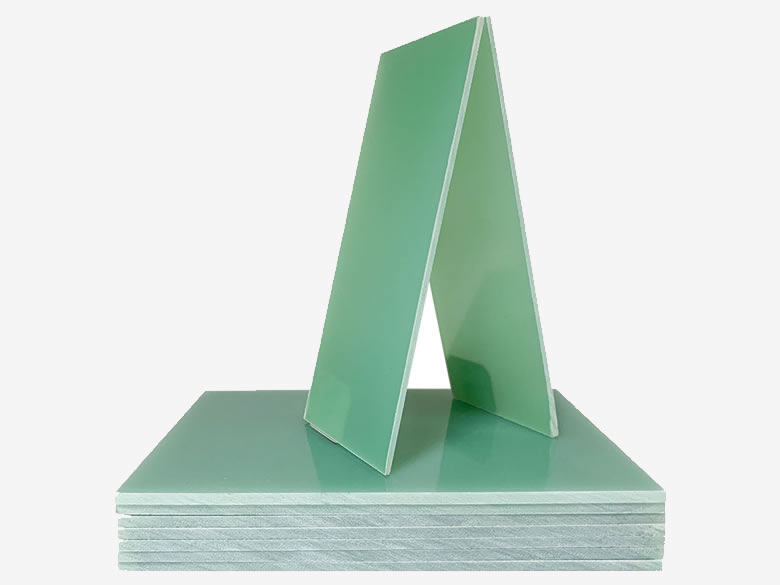

NEMA FR4/EPGC 202/HGW2372.1/EP2 Flame Retardant Epoxy Fiberglass Board

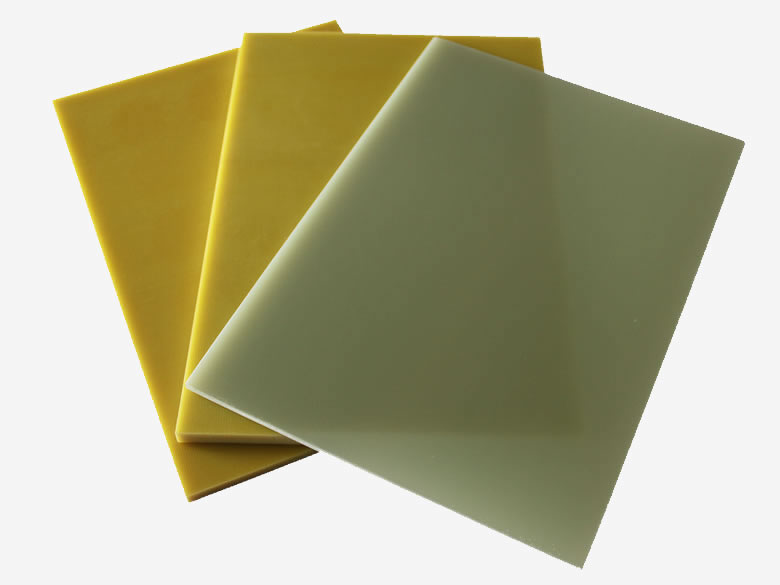

Color: Green/Water Green/White/Yellow/Black
Thickness: 0.5-100mm
Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 mm(Support customize)
Standard Heat resistance rating: Class B (130° C)
Type:FR4 epoxy sheet / ESD FR4 sheet / Halogen-free FR4 sheet
Sample: Free sample shipping for testing
Certificate:UL94-V0 / RoHS / REACH / MSDS / CEMT
Application:Insulation materials for electronic and electrical equipment

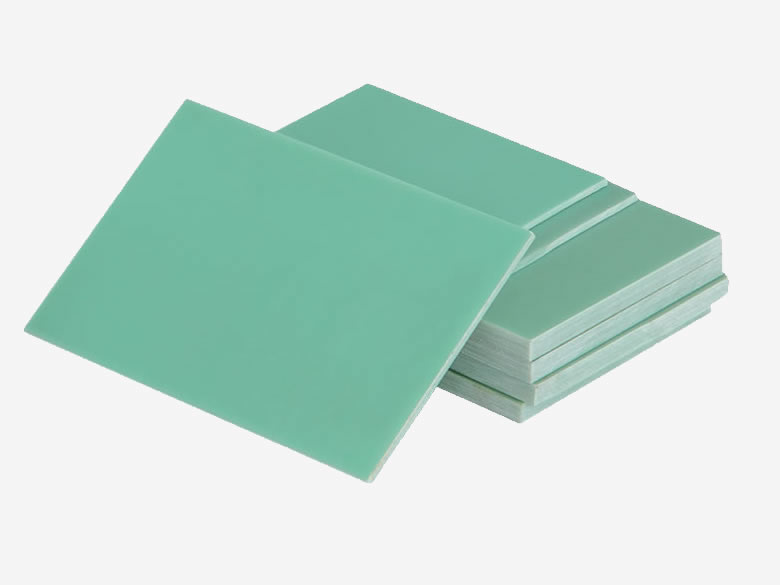

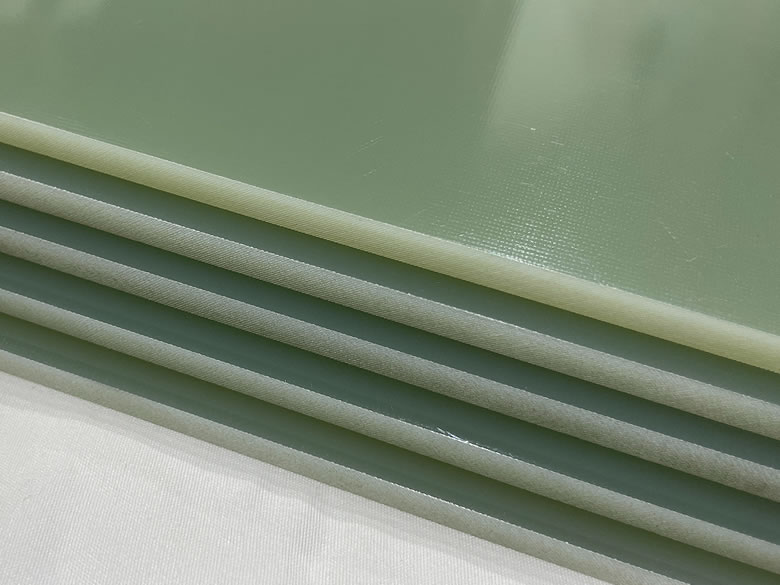

FR4 epoxy fiberglass sheet (FR4 Epoxy Glass Fiber Laminate) is an insulating laminated material made from woven fiberglass cloth and epoxy resin through a high-temperature and high-pressure lamination process. It offers excellent mechanical strength, electrical insulation properties, and thermal resistance. Due to its stability and reliability, FR-4 is widely used in the electronics, power, and industrial equipment industries.
FR4 Sheet Type:FR4 epoxy sheet / ESD FR4 sheet / Halogen-free FR4 sheet. The main differences are:ESD FR4 is a controlled anti-static Sheet, while halogen-free FR4 is an environmentally friendly flame-retardant sheet that complies with regulatory requirements.

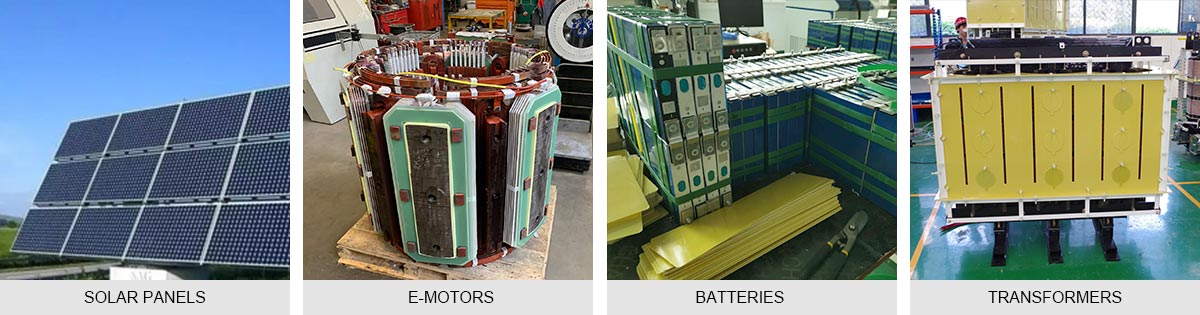

Electrical and Power Equipment Insulation Components:
Transformer insulation boards, motor insulation gaskets, slot insulation, support strips and spacer partitions, switchgear components, busbar insulation supports, as well as insulating parts used in relays, circuit breakers, and switch control panels.
Electronics Industry:
Base material for printed circuit boards (PCBs), reinforcement plates for flexible printed circuits (FPC), and PCB drilling entry sheets.
Mechanical Processing and Manufacturing:
Jigs and molds, ICT testing fixtures, precision planetary gears, as well as internal insulation components and lightweight structural panels used in aerospace, rail transit, and shipbuilding industries.
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.

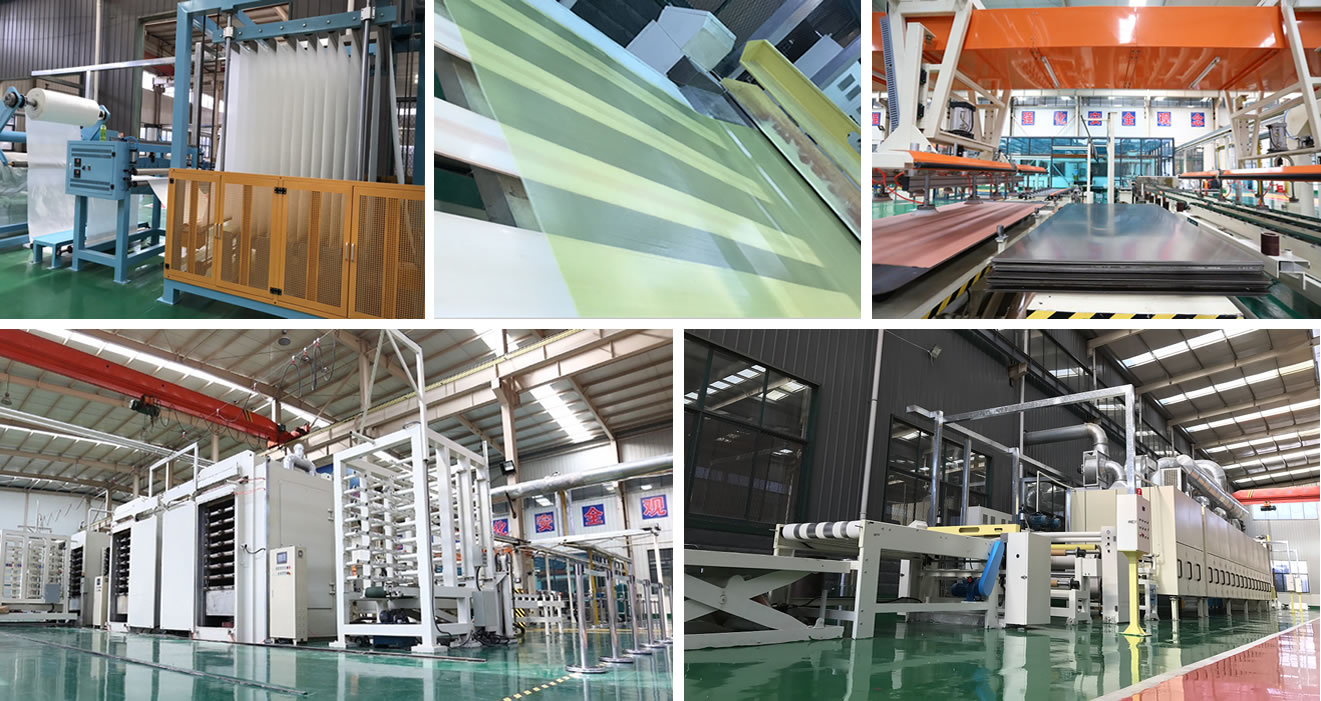

2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.

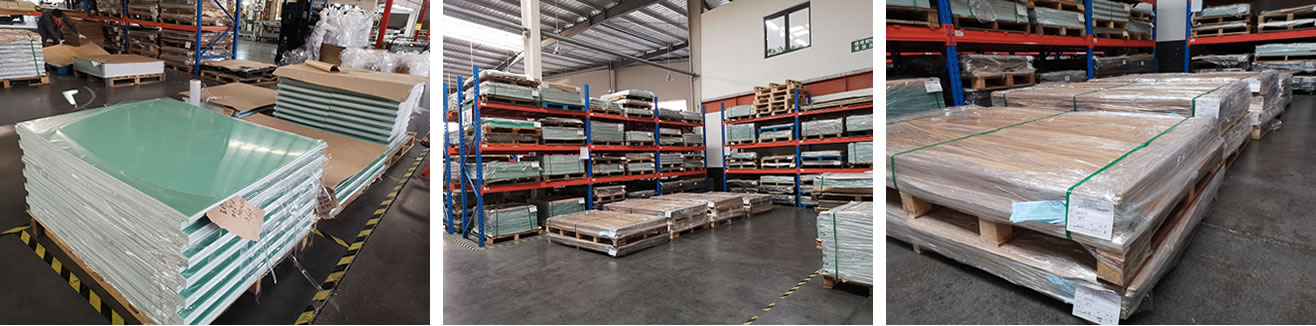

6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
| Product name | NEMA GRADE FR-4/EPGC202 | ||||||
| SECTIONI-MISC CHARACTERISTICS | |||||||
| Density | g/cm³ | 1.95-2.10 | |||||
| Flammability | UL94 | VO | |||||
| Water absorption (5mm) | % | ≤0.15 | |||||
| Chemical family | Resin | Epoxy | |||||
| Reinforcement type | Glass fabrics | 7628 | |||||
| Thermal characteristics | °C | ≥130 | |||||
| Colour | Green (Natural),Yellow | ||||||
| SECTIONII-MECHANICAL CHARACTERISTICS | |||||||
| Bending strength | MPa | ≥400 | |||||
| Tensile strength | MPa | ≥300 | |||||
| Compressive strength ⊥ | MPa | ≥350 | |||||
| Modulus of elasticity | MPa | ≥24000 | |||||
| Impact strength // | kJ/m² | ≥33 | |||||
| SECTIONⅢ-ELECTRICAL CHARACTERISTICS | |||||||
| Electrical strength ⊥ | kV/mm,thicknesss≤3mm | ≥10.2 | |||||
| Breakdown voltage// | kV | ≥35 | |||||
| Proof tracking index | PTI | ≥200 | |||||
| SECTION IV-HAZARDOUS INGREDIENTS | |||||||
| Hazardous components | No OSHA hazardous ingredients | ||||||
| SECTIONV-REACTIVITY DATA | |||||||
| Chemical stability | Stable under normal conditions | ||||||
| Conditions to avoid | Avoid longtime heating above 130℃ | ||||||
| Incompatible materials | Exposure to strong acids or bases will cause damage | ||||||
| Hazardous polymerizations | Will not occur | ||||||
| Storage and use effects | Conventional performance remains stable within 1 year. Long-term exposure to sunlight and high humidity will cause discoloration and performance degradation. | ||||||
| SECTION VI-PRECAUSTION | |||||||
| Over exposure effects | Dust from machining products can iritate the eyes,nose,throat and lungs. Prolonged inhalation of dust can cause lung disease. | ||||||
| Note:All information,recommendations and suggestions appearing herein concerning this product are average values as certained at room temperature by regular statistical analysis. It is provided purely for information and shall not be regarded as binding unless expressly agreed otherwise. | |||||||
| DIMENSIONAL TOLERANCE | Tolerance of length & width is less than 5 mm | ||||||
| Thickness(mm) | Tolerance(mm) | Thickness (mm) | Tolerance(mm) | ||||
| 0.5-0.8 | ±0.05 | 6.0-8.0 | ±0.50 | ||||
| 1.0-1.8 | ±0.15 | 10.0-15.0 | ±0.75 | ||||
| 2.0-2.8 | ±0.20 | 16.0-20.0 | ±1.00 | ||||
| 3.0-5.0 | ±0.30 | 21.0-50.0 | ±2.00 | ||||
