Epoxy pultruded fiberglass rods (FRP Rod)
Standard: IEC61109 IEC61952

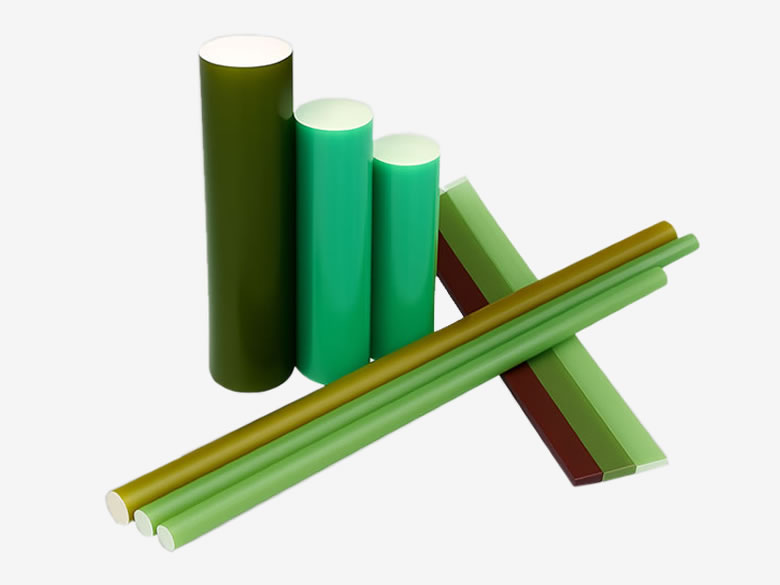

Type: Round, Square
Round:Diameter (Ф5—Ф130mm)
Square:Height * Width（6mm*12mm-80mm*90mm)
Density: 1.7-1.8g/m³
Thermal rating: Class F(155℃)
Color: Green
Application:insulators/composite surge arresters/ fuse cutout

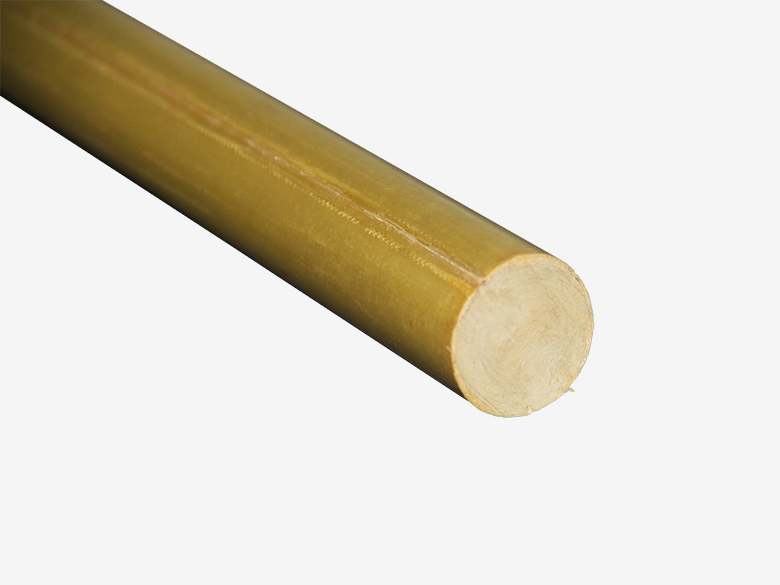

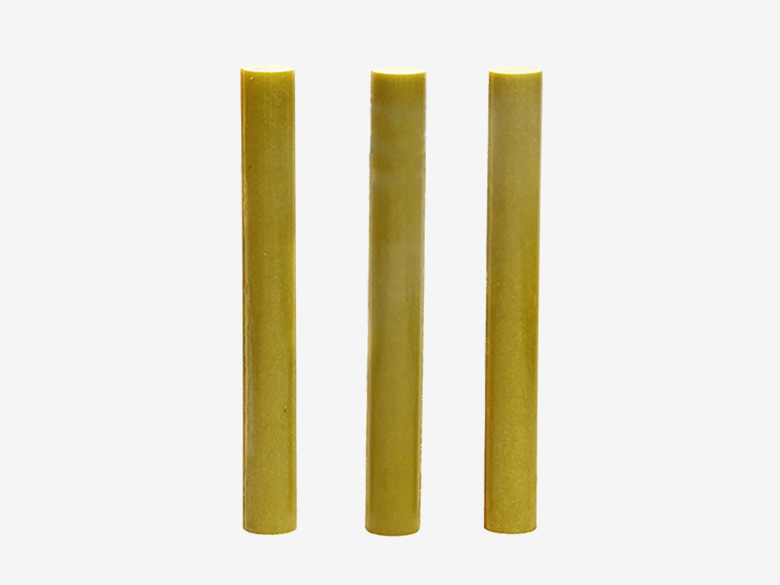

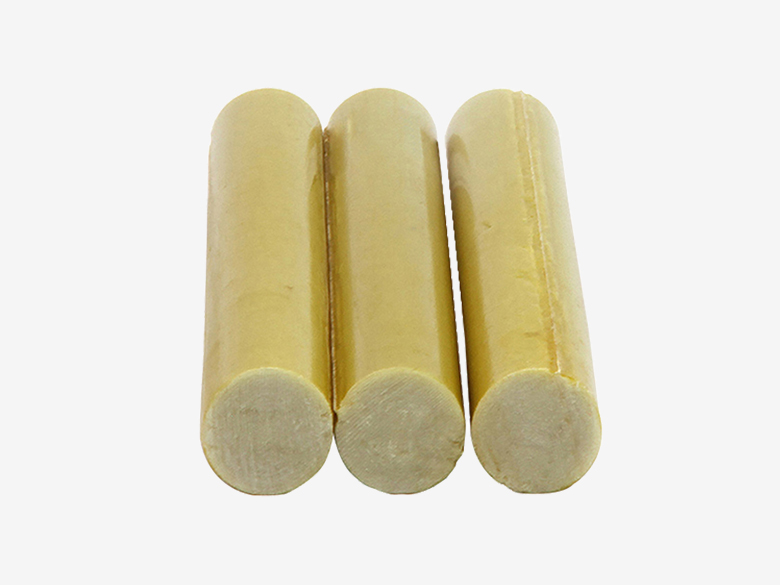

Epoxy Pultruded Fiberglass Rod, also known as FRP rod, is a high-performance insulating structural material manufactured using epoxy resin as the matrix and glass fiber as the reinforcing material through a continuous pultrusion process. This advanced production method enables the rods to be produced in extended lengths and customized according to specific user requirements.
With excellent electrical insulation properties, high mechanical strength, and outstanding dimensional stability, epoxy pultruded fiberglass rods are widely used in medium- and high-voltage electrical equipment, power transmission and distribution systems, renewable energy applications, and various industrial insulation fields.

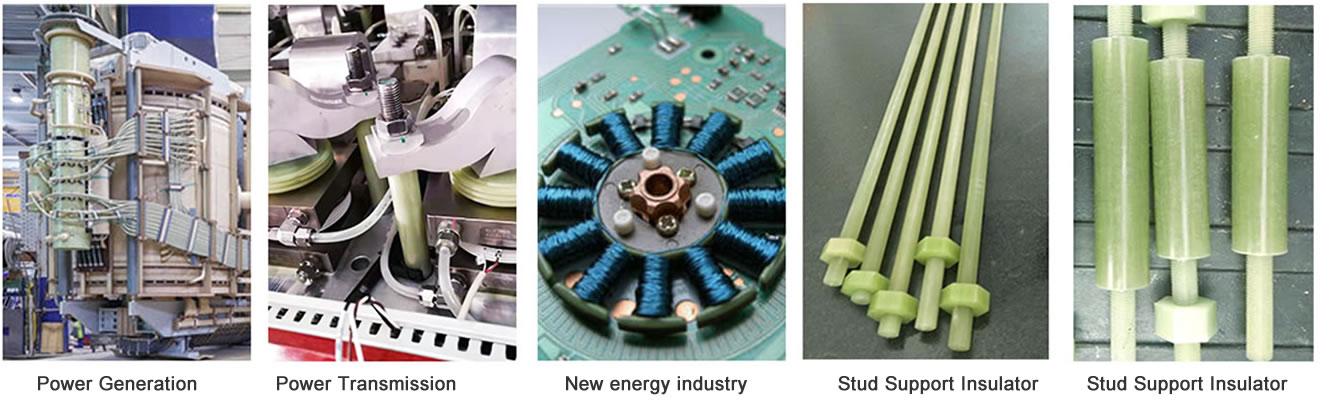

Composite Insulators: Used as the Core Rod for high-voltage and ultra-high-voltage suspension and post insulators to bear massive tensile loads.
Surge Arresters: Serves as the internal structural support for lightning arresters.
Dry-type Transformers: Used as support strips and spacers between transformer windings.
Reactors: Functions as support pillars and fasteners within reactors.
Telecommunications: Used as the Fiber Reinforced Plastic (FRP) Strength Member in optical cables.
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Indicator name | unit | values | |
| density | g/cm2 | 1.9-2.1 | |
| Water absorption rate | % | ≤0.5 | |
| Barcol hardness | – | ≥65 | |
| Tensile strength (parallel fiber direction) | MPa | ≥500 | |
| Tensile modulus (parallel fiber direction) | MPa | ≥1.0*104 | |
| Bending strength (vertical fiber direction) | 23 ± 2 ℃ | MPa | ≥340 |
| 130 ℃ | MPa | ≥180 | |
| Flexural modulus (vertical fiber direction) | MPa | ≥0.6*104 | |
| Compressive strength | Parallel fiber direction | MPa | ≥380 |
| Vertical fiber direction | ≥180 | ||
| Shear strength | MPa | ≥70 | |
| Insulation resistance | Ω | ≥1.0*1012 | |
| Surface resistivity | Ω | ≥1.0*1011 | |
| Breakdown voltage in the fiber direction (in air) | KV | ≥50 | |
| Arc resistance | s | ≥300 | |
| Flammability | – | FV0 | |
