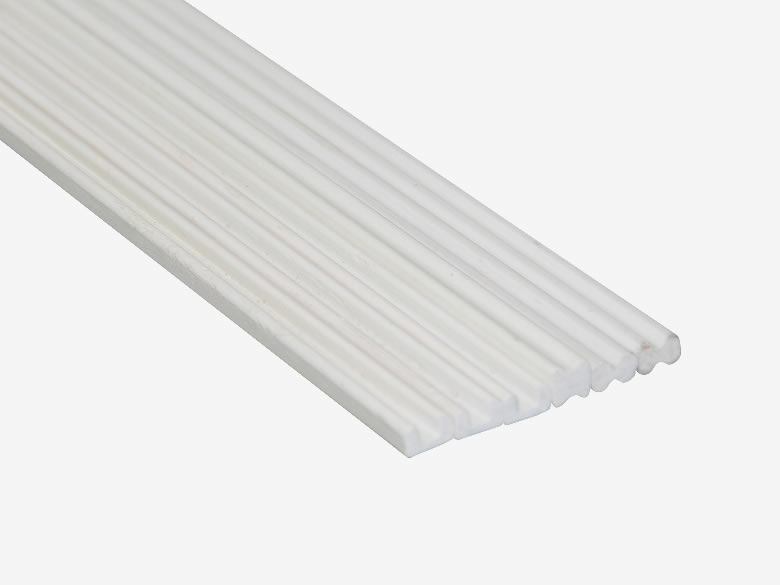

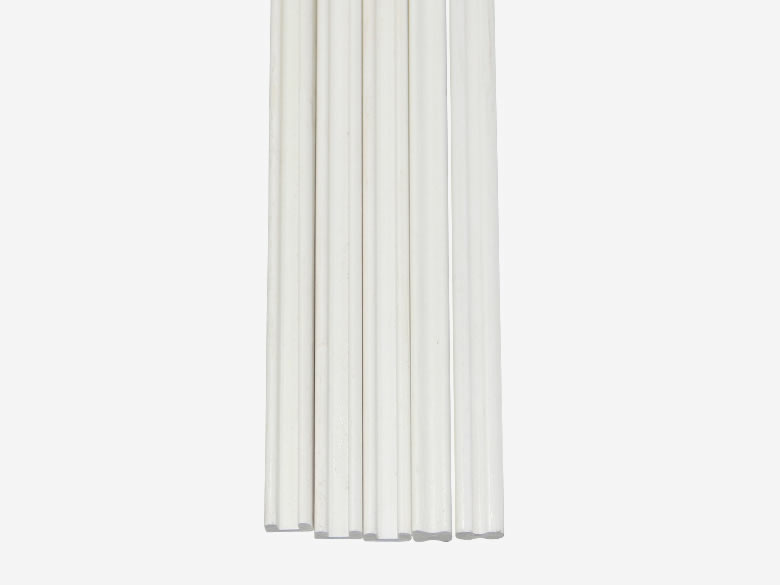

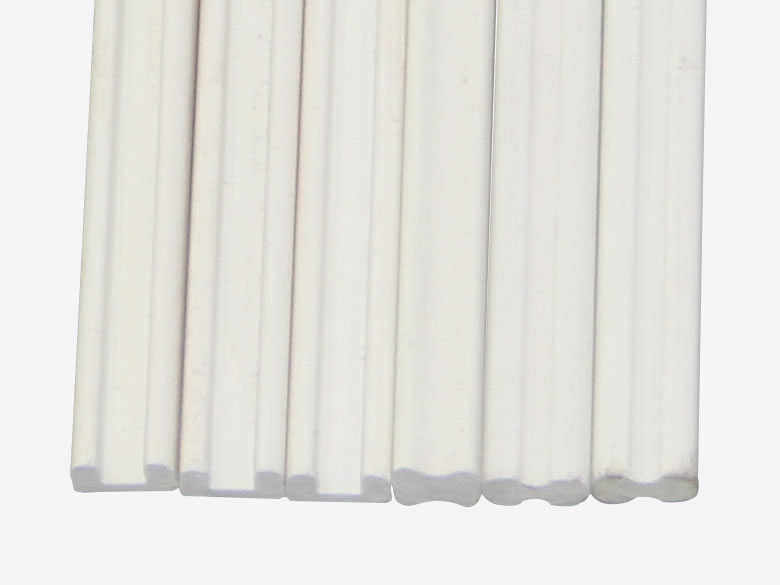

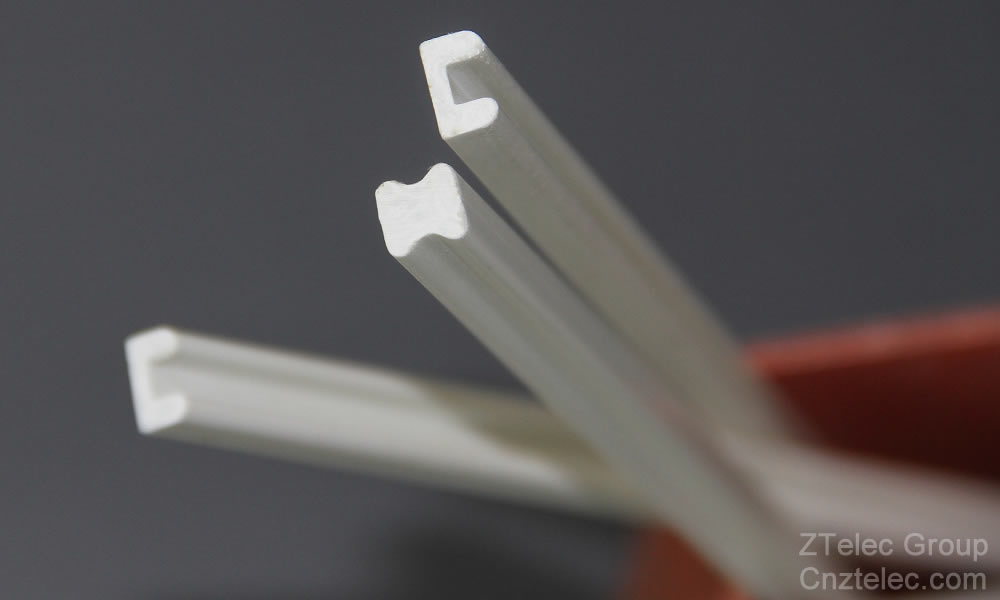

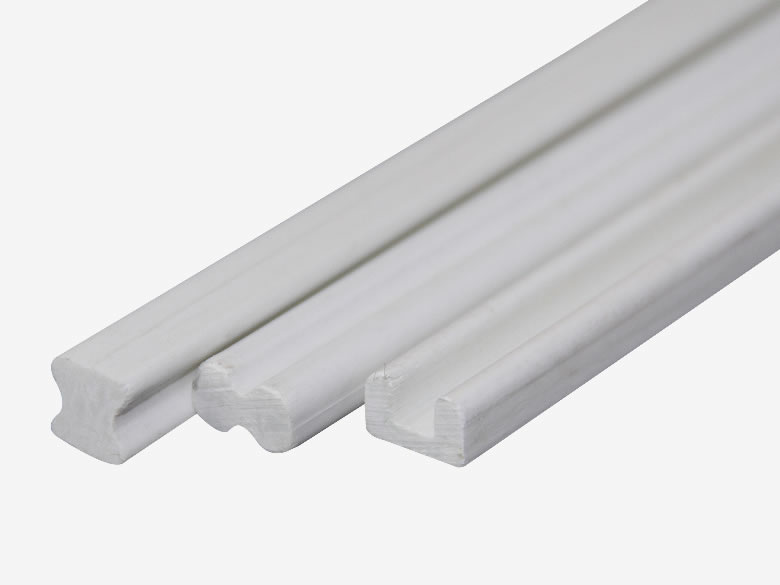

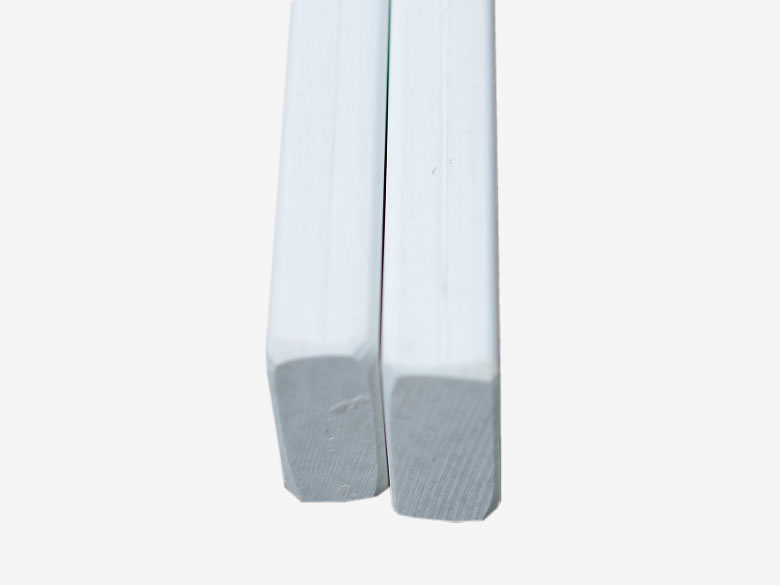

Epoxy Fiberglass Pultruded Spacer includes:
straight I-bar, I-bar, flat bar, hexagonal rod, hollow T-bar, solid T-bar, U shaped bar, R shaped bar, round rod, right angle, etc
Product specifications:View Data sheet table
Fiberglass Pultruded Spacer pultrusion insulation stay is manufactured by pulling fiberglass impregnated with special resin through a mould in the pultrusion process.It has the advantages of excellent insulation, good heat and corrosion resistance, and high mechanical strength and so on.
Other Industry Names：Epoxy Dog Bone Profile，Dog Bone Spacer, I Shape Profile,U Shape Profile,Pultruded Dog Bone Profile,Transformer Insulation Spacer,Insulating Support Spacer , etc

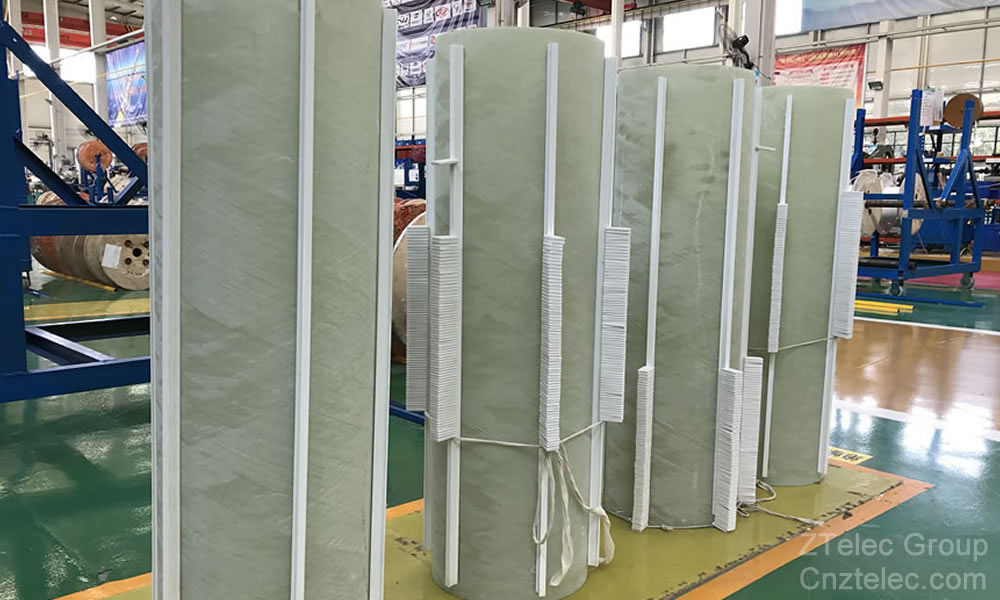

It is mainly used as an insulating structural component, such as the support rod of a dry-type transformer.
Epoxy Fiberglass Pultruded Spacer is manufactured from premium E-glass fiberglass reinforced with epoxy resin through a continuous pultrusion process. It is characterized by consistent quality, a comprehensive range of sizes, and a variety of cross-sectional profiles.
Designed for demanding electrical insulation applications, the product provides excellent mechanical strength, superior electrical insulation properties, and outstanding dimensional stability. Its performance meets or exceeds that of comparable products, making it an ideal choice for transformers, motors, switchgear, and other electrical equipment.
Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric.

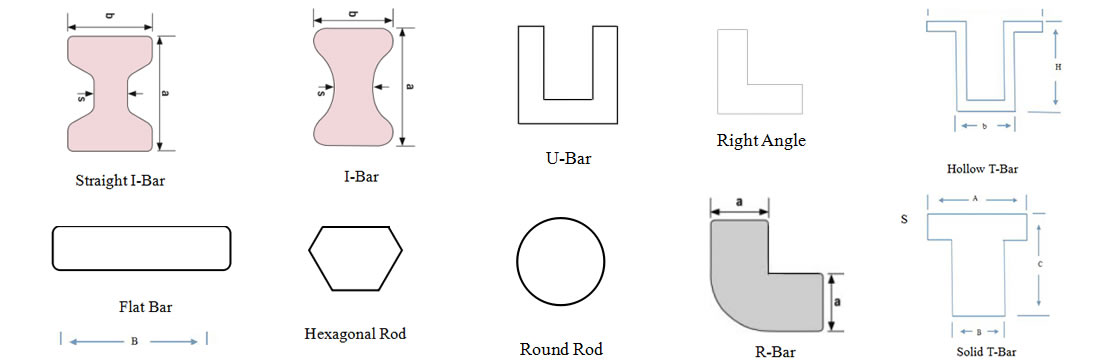

Fiberglass Pultruded Spacerincludes straight I-bar, I-bar, flat bar, hexagonal rod, hollow T-bar, solid T-bar, U shaped bar, R shaped bar, round rod, right angle, etc with various shapes and types and can fully meet the customers’ diversified demands.
| Name | Specification | ||||
|---|---|---|---|---|---|
| Straight I-Bar | 10×12×5 | 10×14×5 | 10×25×5 | 10×20×5 | 10×12×6 |
| I-Bar | 6×6 | 6×7 | 6×8 | 8×8 | 8×10 |
| 10×14 | 10×15 | 10×16 | 12×16 | 14×16 | |
| 14×18 | 16×20 | 16×18 | 14×20 | 12×20 | |
| Flat Bar | 5×22 | 14×16 | 12×14 | 12×30 | 12.5×30 |
| 10×40 | 12×40 | 12×40 | 10×10 | 5×10 | |
| Hollow T-Bar | 18×12×12 | 18×16×12 | 25×19×12 | 25×19×19 | 18×12×20 |
| 25×19×20 | |||||
| Solid T-Bar | 18×12×12 | 18×16×12 | 25×19×12 | 25×19×16 | 19×6×10 |
| 22×14×16 | 22×16×8 | 25×19×10 | 18×12×10 | 25×19×14 | |
| U-Bar | 10×8×2 | 6×10×4 | |||
| R-Bar | 10×17×7 | 19×19×7 | 6×8 | 8×28 | 10×30 |
| 8×8 | 10×10 | ||||
| Hexagonal Rod | 14×14 | ||||
| Round Rod | 4, 6, 8, 12, 20, 24 | ||||
| Right Angle | 75×75×5 | 40×40×4.6 | 10×10 | 7×7 | 6×6 |
| Note: Various shapes and specifications are not limited to those listed above. | |||||
| Name | Specification | ||||
| Straight I-Bar | 10*12*5 | 10*14*5 | 10*25*5 | 10*20*5 | 10*12*6 |
| I-Bar | 6*6 | 6*7 | 6*8 | 8*8 | 8*10 |
| 10*14 | 10*15 | 10*16 | 12*16 | 14*16 | |
| 14*18 | 16*20 | 16*18 | 14*20 | 12*20 | |
| Flat Bar | 5*22 | 14*16 | 12*14 | 12*30 | 12.5*30 |
| 10*40 | 12*40 | 12*40 | 10*10 | 5*10 | |
| Hollow T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*19 | 18*12*20 |
| 25*19*20 | |||||
| Solid T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*16 | 19*6*10 |
| 22*14*16 | 22*16*8 | 25*19*10 | 18*12*10 | 25*19*14 | |
| U-Bar | 10*8*2 | 6*10*4 | |||
| R-Bar | 10*17*7 | 19*19*7 | 6*8 | 8*28 | 10*30 |
| 8*8 | 10*10 | ||||
| Hexagonal Rod | 14*14 | ||||
| Round Rod | 4-6-8-12–20–24 | ||||
| Right Angle | 75*75*5 | 40*40*4.6 | 10*10 | 7*7 | 6*6 |
| ※Various shapes and specifications are not limited to this table. | |||||
