Name:FR4 ESD FIBERGLASS LAMINATE Sheet
Standard: IEC60893-3:2003, GB/T 1303.4-2009
Regular Size: 1020*1220 /1020*1020 /1220*2040 /1220*2440 mm(support customize)
Standard Thickness: 0.5-80mm
Anti-static index:10⁷Ω–10⁹Ω
Heat resistance: Class E (130℃)
Flame resistance:UL94-v0
Color: Black
Application:precision test plates,electrical equipment insulation partitions

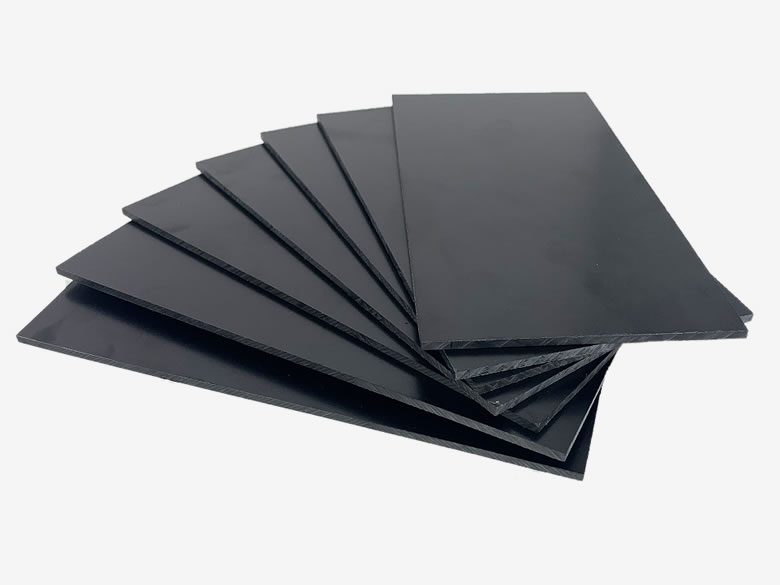

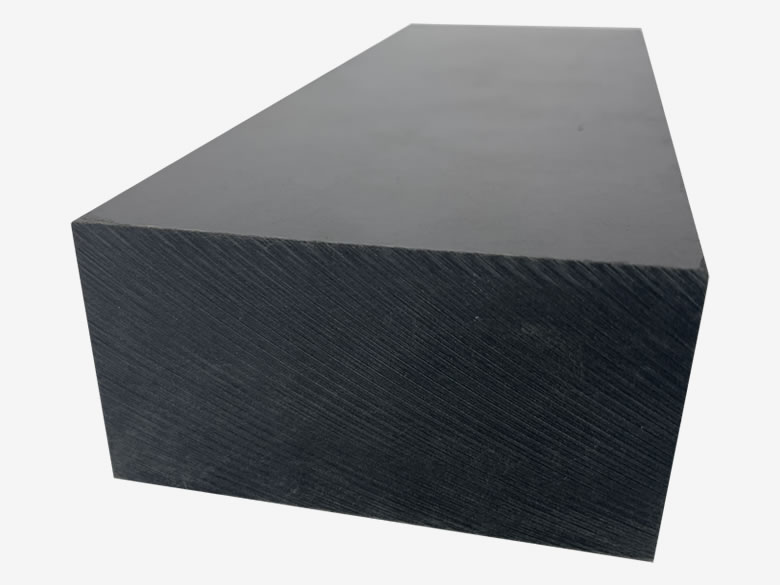

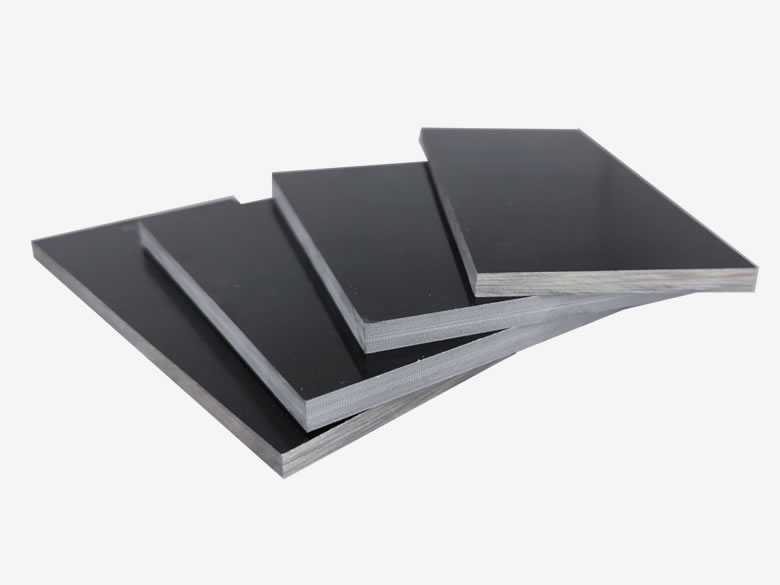

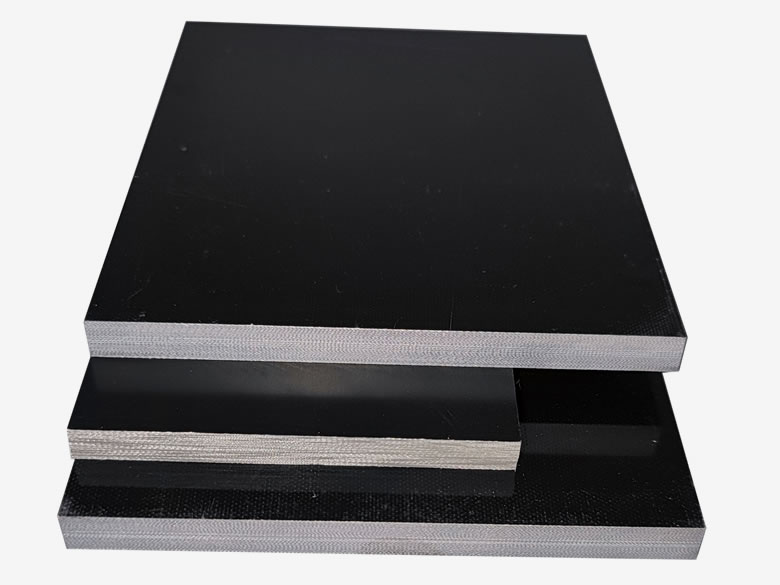

ESD FR4 Fiberglass Sheet (Anti-static Epoxy Glass Fiber Laminate) is a high-performance composite material manufactured by impregnating glass fiber cloth with epoxy resin infused with anti-static agents, processed under high temperature and pressure.
It combines the flame-retardant and insulating properties of standard FR4 (UL 94-V0) with exceptional anti-static performance (surface resistivity). It is primarily utilized in the semiconductor and PCB manufacturing industries for precision fixtures and test boards that require stringent electrostatic discharge protection.
Surface Resistivity: Stable within the range of 10⁷Ω-10⁹Ω This range effectively prevents static accumulation while avoiding rapid electrical discharge (arcing).
Flame Retardancy: Strictly complies with the UL 94-V0 standard, offering excellent self-extinguishing properties.
Thermal Resistance: Typical operating temperatures range from 130℃to 150℃ , maintaining high dimensional stability and resistance to warping under heavy loads.
Physical Strength: High mechanical tensile and impact strength, coupled with superior hardness and wear resistance.
1.Electrical(electrical appliances) equipment Insulation partitions;
2.Insulation pads,transformer insulation plates, motor insulation parts;

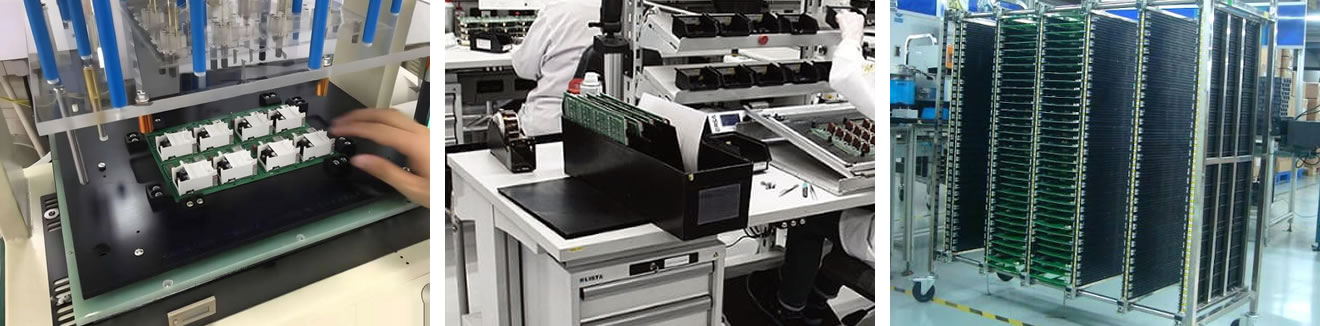

3.Precision test plates,computer punching drill pads,mold jigs,PCB testing ,ICT/FCT test fixtures, SMT production carriers etc
4.cleanroom equipment structural parts

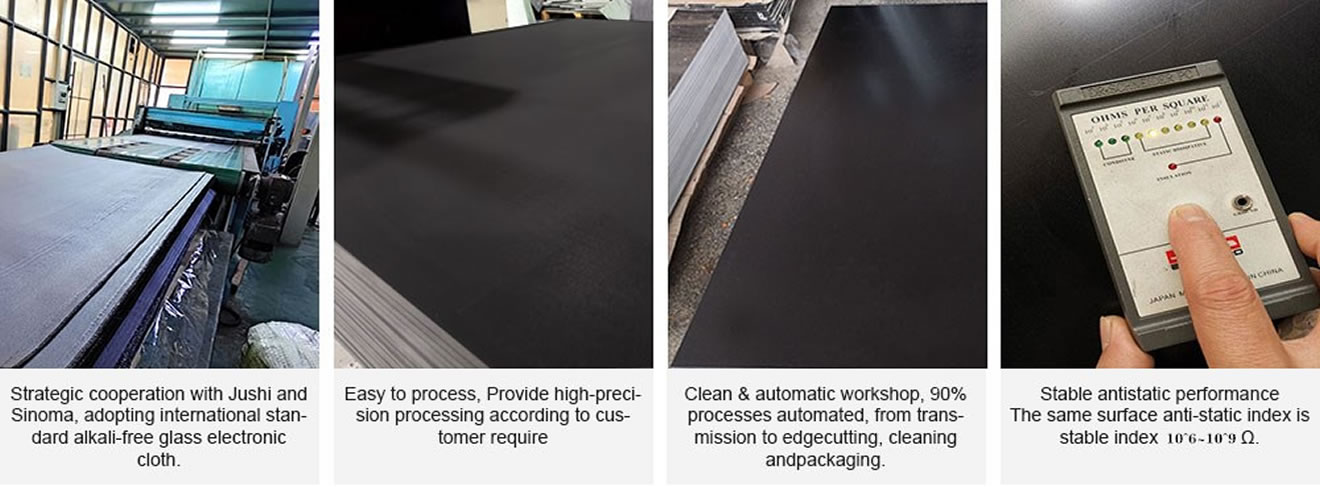

1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Product name | ESD FR4 Fiberglass Laminates / Electrostatic Dissipative Laminates | ||
| Properties | Item | Unit | Value |
| MISC CHARACTERISTICS | Density | g/cm³ | 1.95-2.10 |
| Flammability | UL94 | V0 | |
| Water absorption (5mm) | % | ≤0.15 | |
| Chemical family | Resin | Epoxy | |
| Reinforcement type | Glass fabrics | 7628 | |
| Thermal characteristics | °C | 130 | |
| Colour | Black | ||
| MECHANICAL CHARACTERISTICS | Bending strength | MPa | ≥400 |
| Tensile strength | MPa | ≥300 | |
| Compressive strength | MPa | ≥400 | |
| Impact strength | kJ/m² | ≥33 | |
| ELECTRICAL CHARACTERISTICS | Electrical strength | kV/mm (thickness<3mm) | ≥10.2 |
| Breakdown voltage | kV | ≥35 | |
| Insulation resistance (after water immersion) | Ω | 1×10^7 | |
| Surface resistance | Ω | 1×10^7 – 10^9 | |
| HAZARDOUS INGREDIENTS | Hazardous components | No OSHA hazardous ingredients | |
| REACTIVITY DATA | Chemical stability | Stable under normal conditions | |
| Conditions to avoid | Avoid heating long time above 130°C | ||
| Incompatible materials | Exposure to strong acids or bases will cause damage | ||
| Hazardous polymerizations | Will not occur | ||
| Storage and use effects | Conventional performance remains stable within 1 year. Long-term exposure to sunlight and highhumidity will cause performance degradation. | ||
| PRECAUSTION | Over exposure effects | Dust may irritate eyes, nose, throat and lungs; prolonged inhalation may cause lung disease | |
| Note: Alinformation recommendations and suggestions appearing herein concerning this product are average values ascertained at room temperatureby regular statistical analysis. it is provided purely for information and shall not be regarded as binding unless expressly agreed otherwise. | |||
| Dimensional tolerance | 0.5-0.8 mm | mm | ±0.05 |
| 1.0-1.8 mm | mm | ±0.15 | |
| 2.0-2.8 mm | mm | ±0.20 | |
| 3.0-5.0 mm | mm | ±0.30 | |
| 6.0-8.0 mm | mm | ±0.50 | |
| 10.0-15.0 mm | mm | ±0.75 | |
| 16.0-20.0 mm | mm | ±1.00 | |
| 21.0-50.0 mm | mm | ±2.00 | |
| Length & width | mm | Tolerance within 5 mm | |
