Name: Modified Polyimide Glass Cloth Laminated Sheet
Standard: PIGC301
Regular Size: 1020*2020mm(support customize)
Standard Thickness: 3-50mm
Thermal rating: Class C(>180℃)
Flame resistance:UL94-V0
Color: Brown
Application:Aerospace,Semiconductor & Electronics,Motor,Transformer

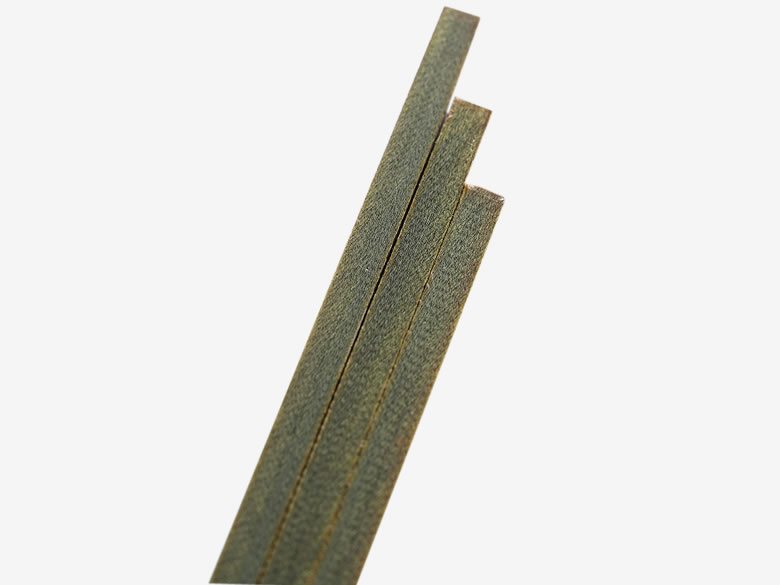

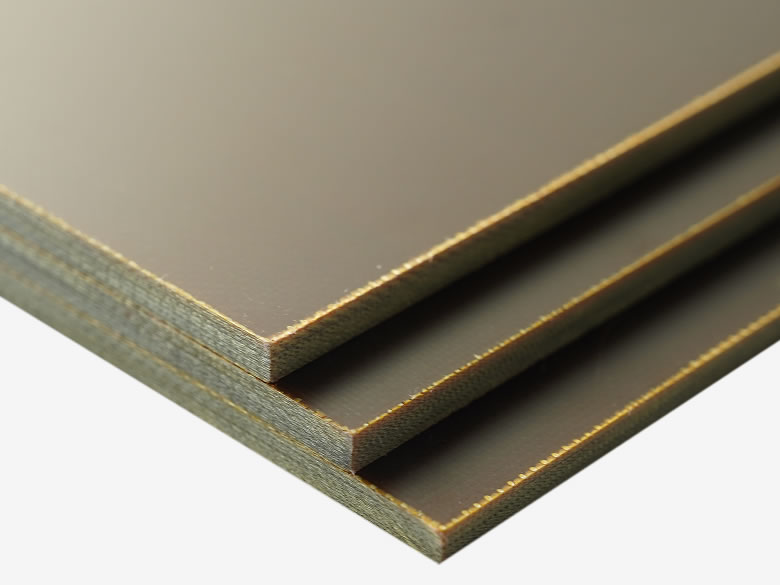

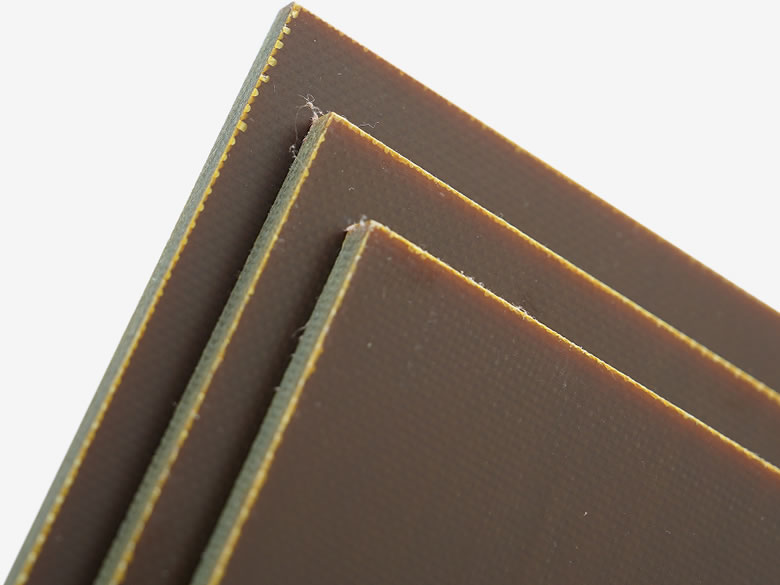

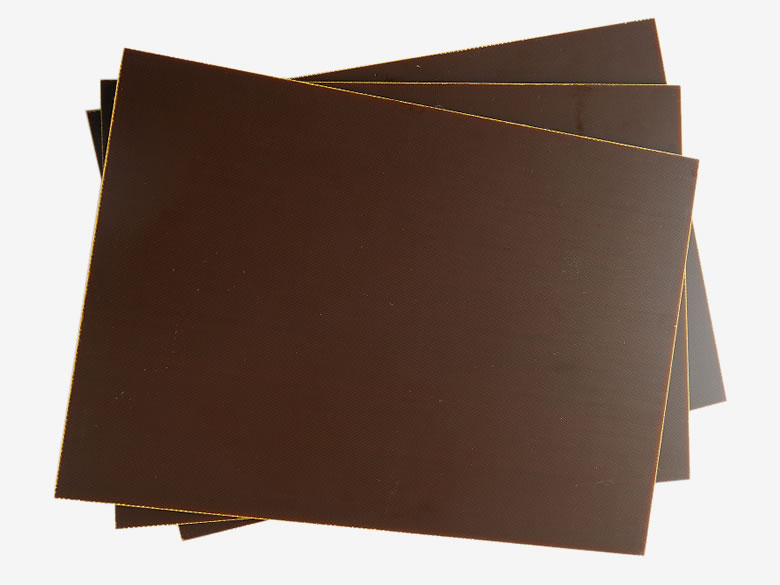

Polyimide Glass Cloth Sheet (PIGC301 ) is a high-performance laminated insulation material made from E-glass fiber cloth impregnated with polyimide (PI) resin and processed under high temperature and pressure. It is classified as a Class C insulation material, offering exceptional thermal stability and mechanical strength.
Designed for extreme working conditions, PIGC301 provides continuous temperature resistance up to 200°C and excellent performance retention at elevated temperatures. It also features outstanding electrical insulation properties, including high dielectric strength and arc resistance, making it ideal for high-voltage applications.
Exceptional Thermal Resistance: Rated at Class C insulation level. Capable of continuous operation at 200°C, with intermittent temperature resistance up to 230°C–250°C.
High Mechanical Strength: Maintains excellent mechanical properties even at 250°C, offering outstanding specific strength and specific modulus.
Superior Electrical Insulation: Features high dielectric strength (approx. 21 kV/mm) and excellent insulation resistance.
Dimensional Stability & Flame Retardancy: Exhibits excellent dimensional stability and meets UL94 V-0 (FV0) flame retardant standards.
Resistance to Harsh Environments: Resistant to chemicals, oils, and solvents; demonstrates extremely low outgassing in vacuum environments, along with strong resistance to plasma and radiation.
High-temperature electrical insulation in motors and transformers
Insulating components in switchgear and power equipment
Semiconductor testing fixtures (IC sockets, burn-in boards)
Aerospace thermal insulation and structural parts
Rail transit traction motor insulation
High-temperature structural insulation in electronic devices
Why Choose us
1.Factory: We operate a professional electrical insulation materials manufacturing facility and are ISO-certified.
2.Fully Automated Production: Our advanced automated workshop is supported by a strict and comprehensive quality management system.
3.Quality Inspection: Equipped with four major laboratories and five core product performance testing capabilities.
4.Processing Services: We provide customized processing solutions based on your requirements, ensuring high quality and on-time delivery.
5.Product Certification: Our products comply with UL, SGS, RoHS, and REACH standards. Sample testing is available upon request.
6.Ready Stock Supply: Standard products can be delivered within 7–15 days.
Our company is certified to ISO 9001, ISO 14001, and ISO 45001 management systems. Our products also comply with international certifications and reports including UL, RoHS, REACH, MSDS, CEMT, as well as factory inspection and test reports provided before shipment.
| Product name | PIGC301 / Modified polyimide fiberglass laminates | ||
| Properties | Item | Unit | Value |
| MISC CHARACTERISTICS | Density | g/cm³ | 1.8-2.1 |
| Flammability | UL94 | HB | |
| Water absorption (5mm) | % | ≤0.5 | |
| Chemical family | Resin | Modified polyimide resin | |
| Reinforcement type | Glass fabrics | Alkali free glass fiber cloth | |
| Thermal characteristics | °C | 200 | |
| Colour | Brown | ||
| MECHANICAL CHARACTERISTICS | Bending strength(Normal) | MPa | ≥400 |
| Bending strength(200±5°C) | MPa | ≥300 | |
| Impact strength (simply supported beam method | kJ/m² | ≥70 | |
| ELECTRICAL CHARACTERISTICS | Parallel layer to breakdown voltage KV(90°C transformer oil) | kV | ≥35 |
| Dielectric strength(90°C transformer oil)0.5mm-1.0mm | MV/m | ≥14.0 | |
| Dielectric strength(90°C transformer oil)1.1mm-2.0mm | MV/m | ≥11.2 | |
| Dielectric strength(90°C transformer oil)2.1mm-3.0mm | MV/m | ≥10.0 | |
| Parallel layer to insulation resistance,immersed in water for 24 hours | Ω | 1×10^2 | |
| Dielectric constant (1MHz) | – | ≤5.5 | |
| Dielectric loss factor (1MHz) | – | ≤0.05 | |
| HAZARDOUS INGREDIENTS | Hazardous components | No OSHA hazardous ingredients | |
| REACTIVITY DATA | Chemical stability | Stable under normal conditions | |
| Conditions to avoid | Avoid heating long time above 200°C | ||
| Incompatible materials | Exposure to strong acids or bases will cause damage | ||
| Hazardous polymerizations | Will not occur | ||
| Storage and use effects | Conventional performance remains stable with in 1 year.Long-term exposureto sunlight and high humidity will cause discoloration and performance degradation. | ||
| PRECAUSTION | Over exposure effects | Dust may irritate eyes, nose, throat and lungs; prolonged inhalation may cause lung disease | |
| Note: Alinformation recommendations and suggestions appearing herein concerning this product are average values ascertained at room temperatureby regular statistical analysis. it is provided purely for information and shall not be regarded as binding unless expressly agreed otherwise. | |||
| WARPING or TWISTING | Thickness | Warping | |
| 1000 (Length of straightedge) | 500 (Length of straightedge) | ||
| 3.0-6.0 mm | ≤10 | ≤2.5 | |
| 6.1-8.0 mm | ≤8 | ≤2.0 | |
| >8.0 mm | ≤6 | ≤1.5 | |
