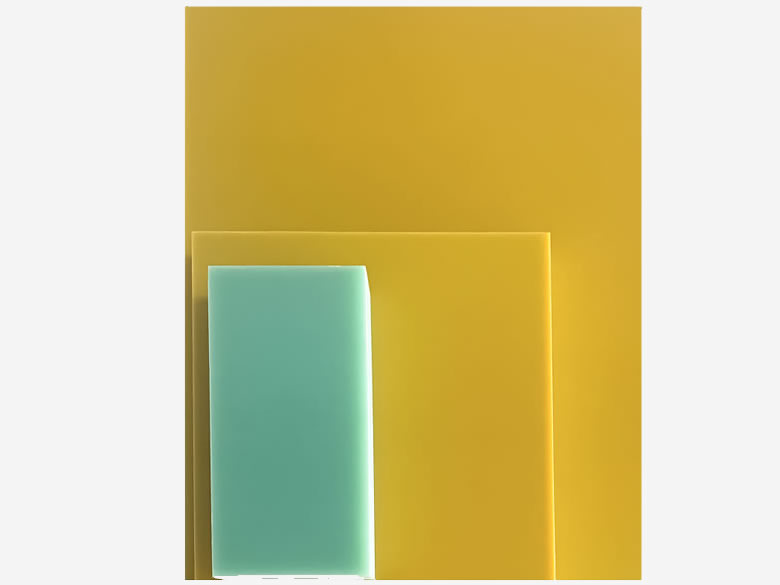

G10 epoxy glass laminate is a high-performance insulating material made from glass fiber cloth and epoxy resin through high-temperature and high-pressure lamination. Known for its excellent mechanical strength, electrical insulation, and dimensional stability, G10 is widely used in motors, transformers, electrical equipment, CNC machinery, and aerospace components. Understanding its temperature range and proper selection criteria is essential for ensuring equipment safety and long-term reliability.
-40°C to +130°C (Class B Temperature Rating)
This is the safe, stable range for long-term operation, ensuring G10 retains its mechanical strength, insulation properties, and structural integrity.
Up to 140°C–150°C for short durations
Suitable for temporary thermal spikes or startup surges. Long exposure may lead to:
Reduced mechanical strength
Thermal deformation
Degradation of insulation performance
| Material | Temperature Class | Continuous Temperature | Features |
|---|---|---|---|
| G10 | Class B | 130°C | High strength, non-flame-retardant |
| FR4 | Class B | 130°C | Flame-retardant, widely used in electronics |
| G11 / FR5 | Class H | 155°C | Superior high-temperature stability |
Excellent tensile, flexural, and compressive strength, ideal for structural supports, slot wedges, and insulation components.
Maintains dielectric strength and insulation resistance in humid, oily, or elevated-temperature environments.
Suitable for industrial environments exposed to humidity, weak acids, alkalis, and oil mist.
Low thermal expansion and minimal deformation make it suitable for precision-machined parts.
≤130°C: G10 is sufficient
130–155°C: Upgrade to G11 / FR5
≥180°C: Use high-temperature materials like polyimide or ceramic insulation boards
| Application | Recommended Material | Reason |
|---|---|---|
| Motor slot wedges, mechanical insulation parts | G10 / G11 | High strength and stability |
| Transformer insulation components | G10 | Excellent dielectric performance |
| Electrical cabinet barriers / supports | G10 | Cost-effective, good insulation |
| PCB carriers & electronic devices | FR4 | UL94 V-0 flame retardant |
| Heavy-duty high-temperature equipment | G11 / FR5 | Maintains strength at high temperature |
For applications with high vibration or continuous stress, choose high-density G10 or G11.
Select Based on Flame-Retardant Requirements
No flame-retardant requirement: G10
UL94 V-0 required: FR4 is the better choice

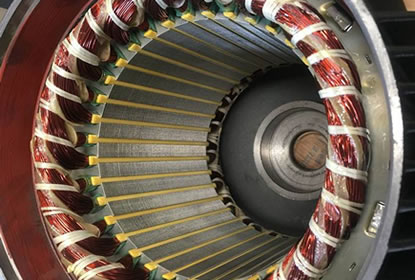

High-voltage motor insulation parts (slot wedges, supports)
Transformer spacers, coil supports, barriers
Electrical cabinet partitions and structural components
Industrial machinery fixtures and wear-resistant parts
Aerospace and military-grade insulation parts
CNC and automation equipment components
| Performance | G10 | FR4 | G11 / FR5 |
|---|---|---|---|
| Continuous Temperature | 130°C | 130°C | 155°C |
| Flame Retardancy | No | Yes (UL94 V-0) | Yes (FR5) |
| Mechanical Strength | High | High | Very high (high-temperature stable) |
| Cost | Medium | Medium | Higher |
| Best Use Cases | Motors, electrical equipment | Electronics, PCBs | High-temperature, heavy-load machines |
General electrical & motor applications → G10
Electronics requiring flame retardancy → FR4
High-temperature / high-load environments → G11 or FR5
≥180°C special conditions → Polyimide, ceramics, or advanced materials
Choosing the right temperature rating and laminate type significantly improves equipment reliability, safety, and lifespan.
