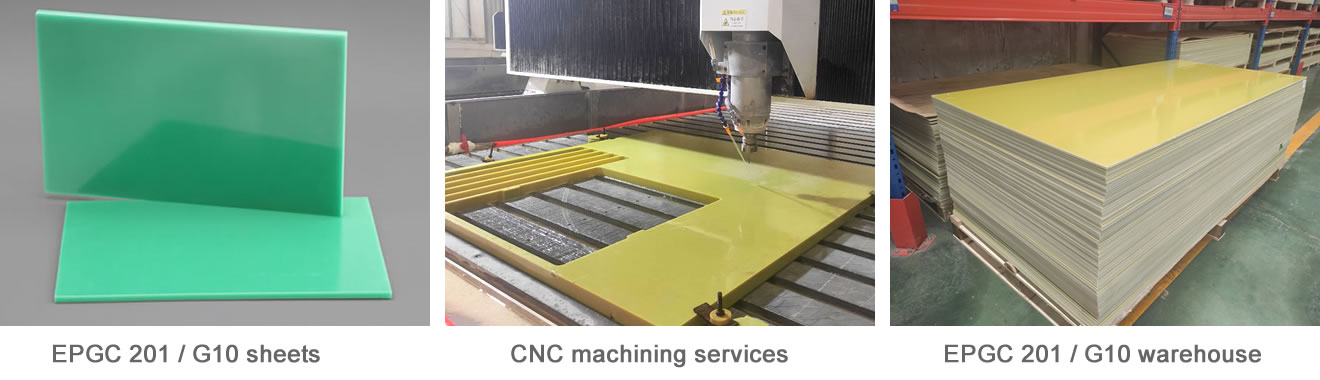

EPGC 201 and G10 are essentially the same industrial rigid laminate sheet. Their relationship is like “two names for one product,” with differences in nomenclature arising solely from regional and industrial standard systems.
EPGC 201 (Full Name: EPGC201 Epoxy Glass Cloth Laminate) is a high-performance rigid insulating material specifically engineered for the electrical, power, and electronics industries.
It is manufactured by impregnating multiple layers of alkali-free fiberglass cloth (as the reinforcement) with a high-molecular epoxy resin matrix, which is then baked, pressed, and cured under high temperature and high pressure.
In international industrial standards, EPGC 201 has several “synonyms.” Its naming directly reflects its core composition:
EPGC 201 and G10 are identical in material substance, varying only by national and industrial standard designations. They serve as equivalent grades to one another:
Core Features of EPGC 201 / G10
In practical industrial applications, G10 / EPGC 201 offers excellent overall performance, but it is not suitable for every application. During material selection, it is necessary to compare it with commonly used alternatives such as FR4 (EPGC 202), G11 (EPGC 203), and traditional Chinese 3240 to determine the most suitable solution.
Material Selection Comparison Table
| Material (NEMA Grade) | IEC Equivalent Grade | Key Differences Compared with G10 | Flame Retardancy (UL 94) | Thermal Class (Tg / Temperature Rating) | Recommended Applications |
| G10 | EPGC 201 | Standard basic grade. Features high mechanical strength and excellent electrical insulation performance. Non-flame-retardant grade. | HB (Non-flame-retardant) | Class B (130°C) | Heavy-duty motors, transformers, electrical insulation components, and mechanical structural parts without strict fire protection requirements. |
| FR4 | EPGC 202 | Flame-retardant version of G10. Mechanical and electrical properties are basically equivalent to G10, but with improved fire resistance. | V-0 (Self-extinguishing after removal of flame) | Class B (130°C) | PCB drilling backup boards, EV battery insulation sheets, and electrical switchgear requiring strict flame-retardant performance. |
| G11 | EPGC 203 | High-temperature upgraded version. Maintains more than 25% of mechanical strength at 150°C operating temperature. | HB / Depends on formulation | Class F (155°C–180°C) | High-power F/H class motors, high-temperature industrial equipment, metallurgy insulation components, and tooling fixtures. |
| 3240 | — | Economical alternative based on Chinese national standards. Slightly lower performance than G10, with larger thickness tolerance, but more cost-effective. | Non-flame-retardant | Class B (130°C) | Cost-sensitive applications, general insulation spacers, and applications without strict dimensional accuracy requirements. |
Common Machining Defects and Solutions (Avoiding Common Problems)
| Common Machining Issue | Cause Analysis | Practical Solutions |
| Edge fuzzing and burrs | Tool wear; conventional single-flute or double-flute cutters cannot effectively cut through the glass fibers. | 1. Replace with a new cutting tool. 2. Use tungsten carbide corn milling cutters. 3. Apply climb milling (down milling) method. |
| Interlayer delamination and edge chipping | Excessive cutting force caused by aggressive feed rates; workpiece bottom not properly supported during drilling. | 1. Use a backing plate during drilling. 2. Reduce feed per tooth and machine in multiple passes. 3. Select tools with proper helix angles to direct cutting forces downward. |
| Tool discoloration and material burning | Excessive local cutting temperature; cutting tool remains stationary too long during machining. | 1. Increase feed speed to reduce tool dwell time. 2. Improve dust extraction airflow or use air cooling. |
| Oversized dimensions / undersized holes | Epoxy laminate has slight elastic recovery, and machining heat may cause minor thermal expansion. | 1. Adjust tool diameter compensation by increasing drill or milling tool size by 0.02–0.05 mm compared with the theoretical drawing dimension. |
If you are looking for EPGC201 sheets, please contact ZTelec Group. ZTelec Group is a professional manufacturer of high-quality electrical insulation materials with more than 65 years of manufacturing experience.it can be customized according to the product specifications, thickness and purpose you need.
Contact us now to get detailed product information and quotation. We can also mail samples for free for your testing.
